SI9410DY - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 7 A (VGS = 10V).
  • RDS(ON) ＜ 30mΩ (VGS = 10V).
  • RDS(ON) ＜ 40mΩ (VGS = 5V).
  • RDS(ON) ＜ 50mΩ (VGS = 4.5V) SOP-8 MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain DDD D G S SS +0.04 0.21 -0.02.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (Note.1) Pulsed Drain Current Power Dissipation (Note.1) Thermal Resistance. Junction- to-Ambient Juncti.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI9410DY N-channel enhancement mode field-effect transistor NXP
SI9410DY N-Channel 30-V (D-S) MOSFET Vishay Siliconix
SI9410BDY N-Channel MOSFET Vishay Siliconix
SI9400DY P-Channel MOSFET Vishay Siliconix
Si9405DY P-Channel Enhancement-Mode MOSFET TEMIC

Other Datasheets by Kexin Semiconductor

Part Number Description
SI9926 Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

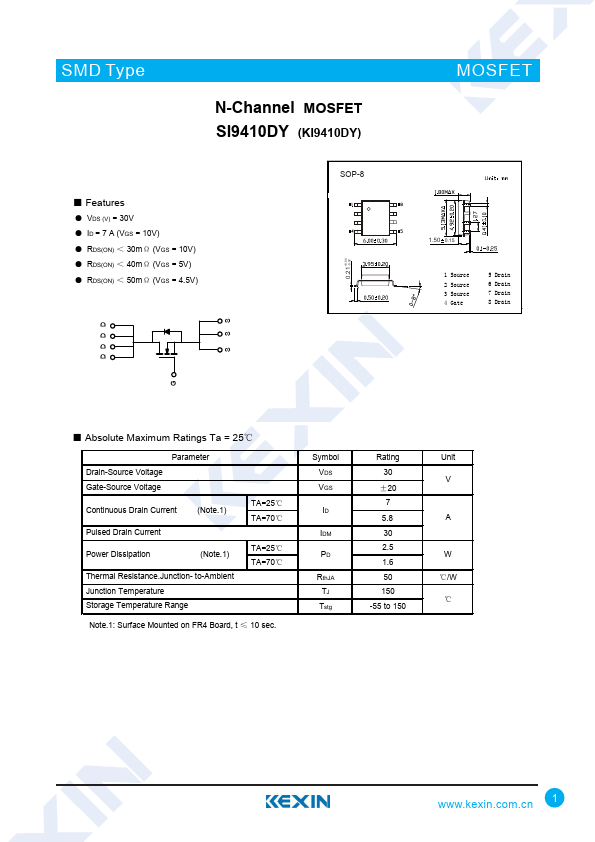

SMD Type N-Channel MOSFET SI9410DY (KI9410DY) ■ Features ● VDS (V) = 30V ● ID = 7 A (VGS = 10V) ● RDS(ON) ＜ 30mΩ (VGS = 10V) ● RDS(ON) ＜ 40mΩ (VGS = 5V) ● RDS(ON) ＜ 50mΩ (VGS = 4.5V) SOP-8 MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain DDD D G S SS +0.04 0.21 -0.02 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (Note.1) Pulsed Drain Current Power Dissipation (Note.1) Thermal Resistance.Junction- to-Ambient Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ TA=25℃ TA=70℃ Note.1: Surface Mounted on FR4 Board, t ≤ 10 sec. Symbol VDS VGS ID IDM PD RthJA TJ Tstg Rating 30 ±20 7 5.8 30 2.5 1.6 50 150 -55 to 150 Unit V A W ℃/W ℃ www.kexin.com.
