SI7898DP - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 150V.
  • ID = 4.8 A (VGS = 10V) D.
  • RDS(ON) ＜ 87mΩ (VGS = 10V).
  • RDS(ON) ＜ 98 mΩ (VGS = 4.5V) G S PowerPAK ® SO-8 (DFN5X6) 6.15 mm D 8 D 7 D 6 D 5 S 1 S 5.15 mm 2 S 3 G 4 Bottom View.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Ta=25℃ Ta=70℃ Pulsed Drain Current Avalanche Current L=0.1mH Power Dissipation Ta=25℃ Ta=70℃ Thermal Resistance. Junction- to-Ambient Thermal Re.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI7898DP N-Channel 150-V (D-S) MOSFET Vishay Siliconix
SI7892DP N-Channel MOSFET Vishay Siliconix
Si7804DN N-Channel 30-V (D-S) Fast Switching MOSFET Vishay
SI7805 3-Terminal Positive Voltage Regulator SeCoS
SI7806 3-Terminal Positive Voltage Regulator SeCoS

Other Datasheets by Kexin Semiconductor

Part Number Description
SI7738DP N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

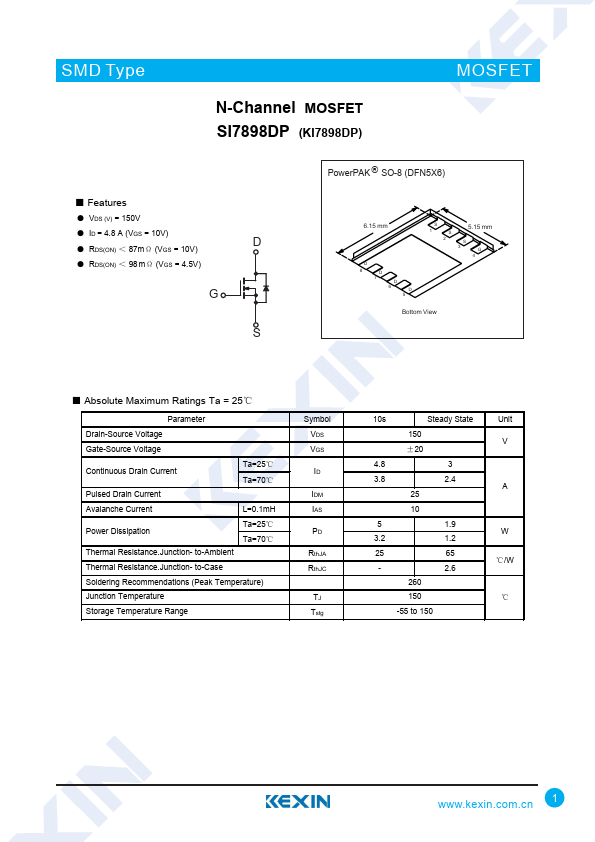

SMD Type N-Channel MOSFET SI7898DP (KI7898DP) MOSFET ■ Features ● VDS (V) = 150V ● ID = 4.8 A (VGS = 10V) D ● RDS(ON) ＜ 87mΩ (VGS = 10V) ● RDS(ON) ＜ 98 mΩ (VGS = 4.5V) G S PowerPAK ® SO-8 (DFN5X6) 6.15 mm D 8 D 7 D 6 D 5 S 1 S 5.15 mm 2 S 3 G 4 Bottom View ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Ta=25℃ Ta=70℃ Pulsed Drain Current Avalanche Current L=0.1mH Power Dissipation Ta=25℃ Ta=70℃ Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Case Soldering Recommendations (Peak Temperature) Junction Temperature Storage Temperature Range Symbol VDS VGS ID IDM IAS PD RthJA RthJC TJ Tstg 10s Steady State 150 ±20 4.8 3 3.8 2.4 25 10 5 1.9 3.2 1.
