RUE003N02 - N-Channel MOSFET

Features

  • VDS (V) = 20V.
  • ID = 0.3 A.
  • RDS(ON) ＜ 1Ω (VGS = 4V).
  • RDS(ON) ＜ 1.2Ω (VGS = 2.5V).
  • RDS(ON) ＜ 1.4Ω (VGS = 1.8V).
  • Fast switching speed. Drain BODY Gate DIODE ESD.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RUE003N02 1.8V Drive Nch MOSFET Rohm
RUE002N02 1.2V Drive Nch MOSFET Rohm
RUE002N05 1.2V Drive Nch MOSFET Rohm
RUE090 PTC Devices Raychem
RUE RUE Selection Guide Raychem

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

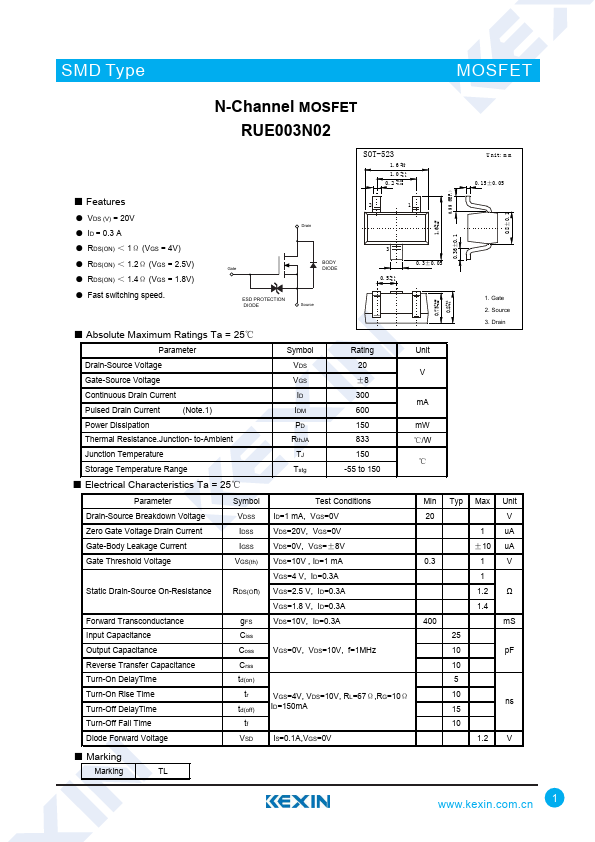

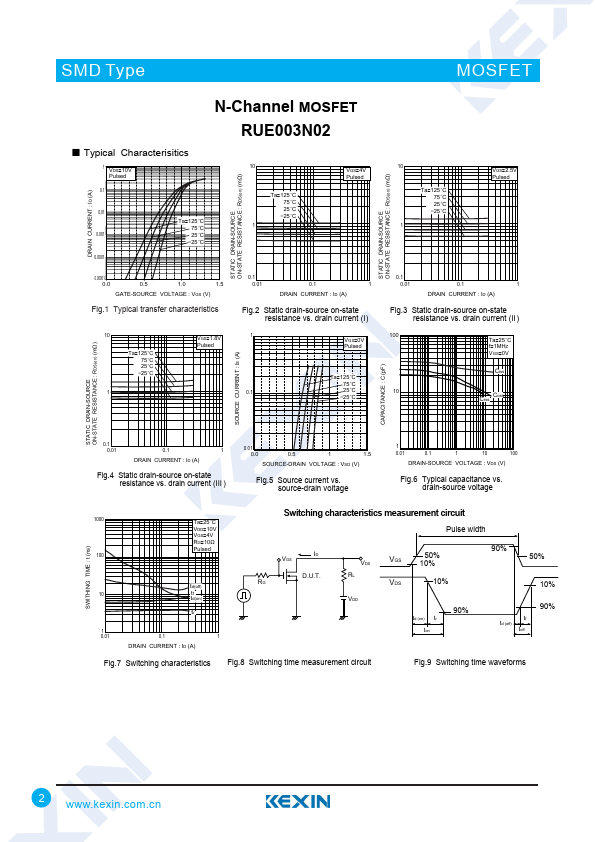

SMD Type MOSFET N-Channel MOSFET RUE003N02 SOT-523 1.6 +0.1 -0.1 1.0 +0.1 -0.1 0.2 +0.05 -0.05 U nit: m m 0.15±0.05 0.55 (REF.) 0.36±0.1 ■ Features ● VDS (V) = 20V ● ID = 0.3 A ● RDS(ON) ＜ 1Ω (VGS = 4V) ● RDS(ON) ＜ 1.2Ω (VGS = 2.5V) ● RDS(ON) ＜ 1.4Ω (VGS = 1.8V) ● Fast switching speed. Drain BODY Gate DIODE ESD PROTECTION DIODE Source 2 1 +0.15 1.6 -0.15 3 0.5 +0.1 -0.1 0.3±0.05 +0.05 0.75 -0.05 +0.1 0.8 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 20 V VGS ±8 Continuous Drain Current Pulsed Drain Current (Note.1) ID 300 mA IDM 600 Power Dissipation PD 150 mW Thermal Resistance.
