NTR4170NT - N-Channel MOSFET

Key Features

  • VDS (V) = 30V ID = 5.8 A (VGS = 10V) RDS(ON) 28m (VGS = 10V) RDS(ON) 33m (VGS = 4.5V) RDS(ON) 52m (VGS = 2.5V) ƽ PbíFree Package May be Available. The GíSuffix Denotes a PbíFree Lead Finish +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 11.. BGasaete 22.. ESmiotutrecre 33.. cDolrlaeicntor Absolute Maximum Ratings Ta = 25 Parameter Drain-Source Voltage Gate-Source.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NTR4170N Power MOSFET ON Semiconductor
NTR4171P Power MOSFET ON Semiconductor
NTR4101P P-Channel Power MOSFET ON Semiconductor
NTR4003N 30V 0.56A N-Channel MOSFET ON Semiconductor
NTR4501N N-Channel Power MOSFET ON Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
NTR4501NT1G N-Channel MOSFET
NTR5105P P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

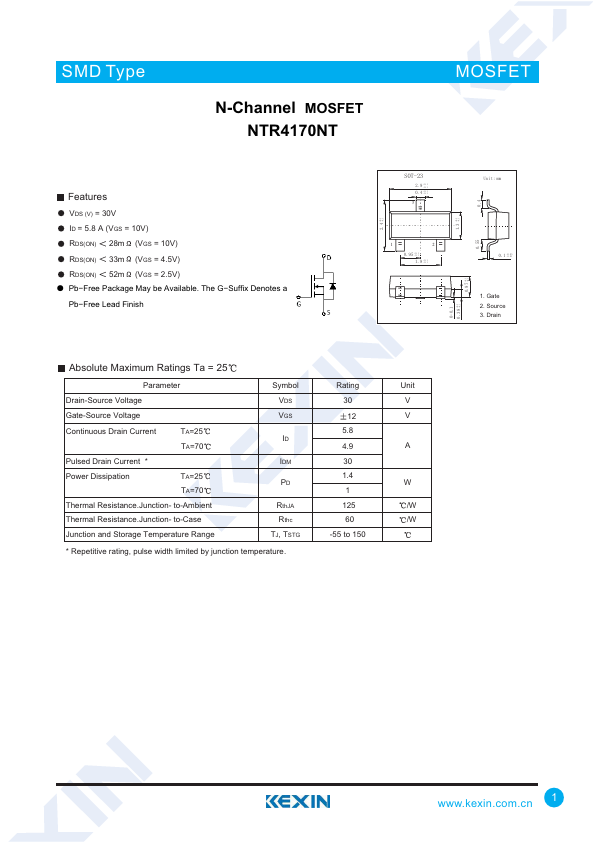

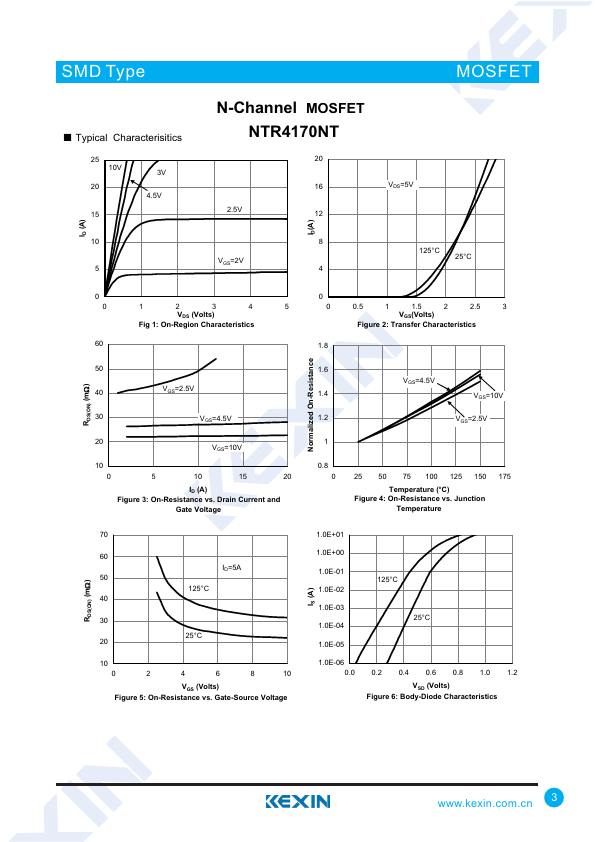

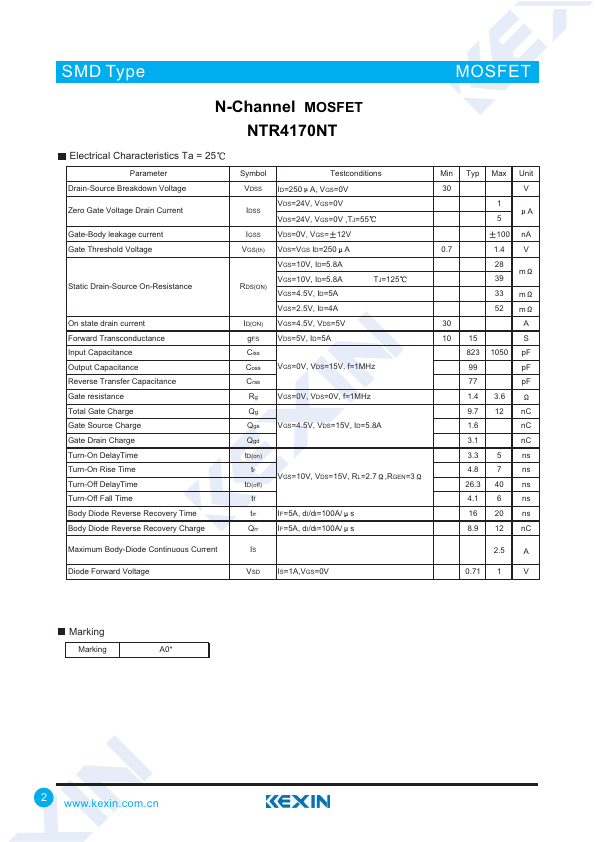

SMD Type N-Channel MOSFET NTR4170NT MOSFIECT Features VDS (V) = 30V ID = 5.8 A (VGS = 10V) RDS(ON) 28m (VGS = 10V) RDS(ON) 33m (VGS = 4.5V) RDS(ON) 52m (VGS = 2.5V) ƽ PbíFree Package May be Available. The GíSuffix Denotes a PbíFree Lead Finish +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 11.. BGasaete 22..ESmiotutrecre 33..cDolrlaeicntor Absolute Maximum Ratings Ta = 25 Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current TA=25 TA=70 Pulsed Drain Current * Power Dissipation TA=25 TA=70 Thermal Resistance.Junction- to-Ambient Thermal Resistance.
