NDT2955 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-60V.
  • ID =-2.5 A (VGS =-10V).
  • RDS(ON) ＜ 300mΩ (VGS =-10V).
  • RDS(ON) ＜ 500mΩ (VGS =-4.5V) D G D S SOT-223 6.50±0.2 3.00±0.1 4 10b Unit:mm 7.0±0.3 3.50±0.2 1.80 (max) 0.02 ~ 0.1 1 2 3 2.30 (typ) 4.60 (typ) 0.70±0.1 0.250 Gauge Plane 1.Gate 2.Drain 3.Source 4.Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (Note.1) Pulsed Drain Current (Note.1) Power Dissipation (No.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NDT2955 P-Channel MOSFET Fairchild
NDT2955 P-Channel Enhancement Mode Field Effect Transistor ON Semiconductor
NDT2955 P-Channel 60V MOSFET VBsemi
NDT28P 2Gb (x8) DDR3L Synchronous DRAM Insignis
NDT014 N-Channel MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
NDT20N06 N-Channel MOSFET
NDT25N06 N-Channel MOSFET
NDT25N15 N-Channel MOSFET
NDT2N60 N-Channel MOSFET
NDT2N60P N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

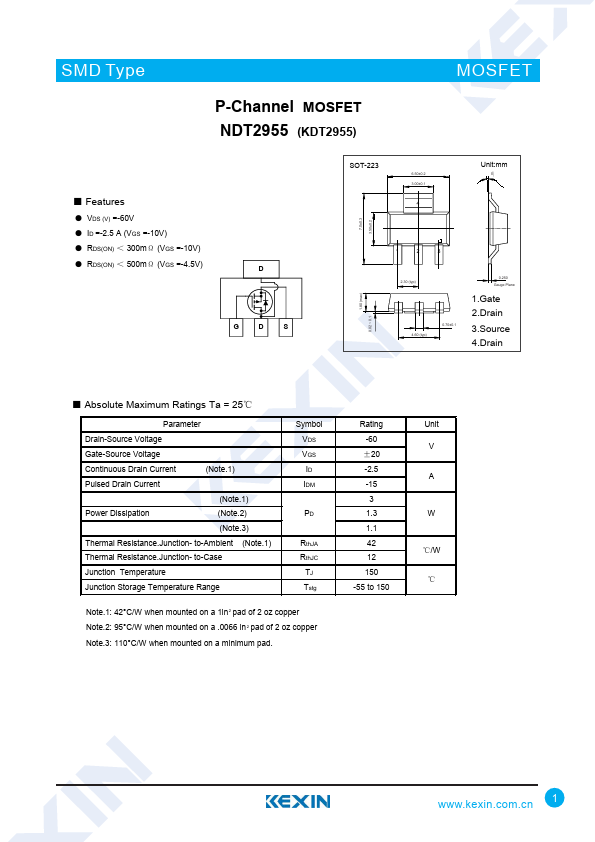

SMD Type MOSFET P-Channel MOSFET NDT2955 (KDT2955) ■ Features ● VDS (V) =-60V ● ID =-2.5 A (VGS =-10V) ● RDS(ON) ＜ 300mΩ (VGS =-10V) ● RDS(ON) ＜ 500mΩ (VGS =-4.5V) D G D S SOT-223 6.50±0.2 3.00±0.1 4 10b Unit:mm 7.0±0.3 3.50±0.2 1.80 (max) 0.02 ~ 0.1 1 2 3 2.30 (typ) 4.60 (typ) 0.70±0.1 0.250 Gauge Plane 1.Gate 2.Drain 3.Source 4.Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (Note.1) Pulsed Drain Current (Note.1) Power Dissipation (Note.2) (Note.3) Thermal Resistance.Junction- to-Ambient (Note.1) Thermal Resistance.Junction- to-Case Junction Temperature Junction Storage Temperature Range Symbol VDS VGS ID IDM PD RthJA RthJC TJ Tstg Note.
