MCH6405 - N-Channel Enhancement MOSFET

Key Features

  • s.
  • VDS (V) = 20V.
  • ID = 5.0 A.
  • RDS(ON) ＜ 41mΩ (VGS = 4V).
  • RDS(ON) ＜ 54mΩ (VGS = 2.5V) ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 +0.1 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1 : Drain 2 : Drain 3 : Gate 4 : Source 5 : Drain 6 : Drain 0-0.1 +0.1 0.68 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dissipatio.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MCH6405 N-Channel Silicon MOSFET Sanyo
MCH6401 Ultrahigh-Speed Switching Applications Sanyo
MCH6402 Ultrahigh-Speed Switching Applications Sanyo
MCH6406 Ultrahigh-Speed Switching Applications Sanyo Semicon Device
MCH6412 N-Channel Silicon MOSFET General-Purpose Switching Device Applications Sanyo Semicon Device

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

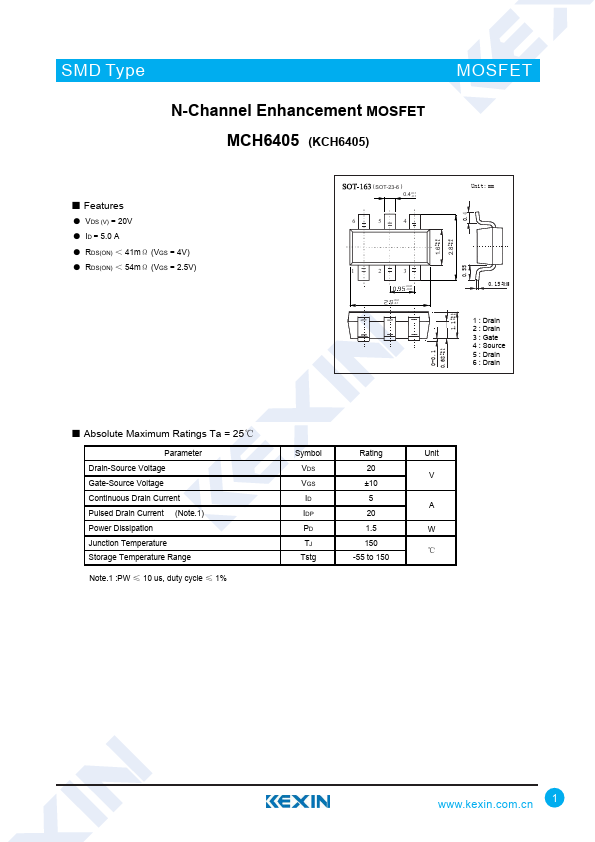

SMD Type N-Channel Enhancement MOSFET MCH6405 (KCH6405) MOSFET ■ Features ● VDS (V) = 20V ● ID = 5.0 A ● RDS(ON) ＜ 41mΩ (VGS = 4V) ● RDS(ON) ＜ 54mΩ (VGS = 2.5V) ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 +0.1 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1 : Drain 2 : Drain 3 : Gate 4 : Source 5 : Drain 6 : Drain 0-0.1 +0.1 0.68 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dissipation Junction Temperature Storage Temperature Range Note.1 :PW ≤ 10 us, duty cycle ≤ 1% Symbol Rating Unit VDS 20 V VGS ±10 ID 5 A IDP 20 PD 1.5 W TJ 150 ℃ Tstg -55 to 150 www.kexin.com.
