KX90N06 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 70V.
  • ID = 80 A (VGS = 10V).
  • RDS(ON) ＜ 7.2mΩ (VGS = 10V).
  • Ultra Low On-Resistance N-Channel MOSFET KX90N06 TO-220 9.90 ± 0.20 (8.70) ø3.60 ± 0.10 (1.70) 1.30 ± 0.10 9.20 ± 0.20 (1.46) (45 ) 13.08 ± 0.20 (1.00) 1.27 ± 0.10 1.52 ± 0.10 123 2.54TYP [2.54 ± 0.20 ] 0.80 ± 0.10 2.54TYP [2.54 ± 0.20 ] 10.00 ± 0.20 (3.00) (3.70) 15.90 ± 0.20 18.95MAX. 2.80 ± 0.10 10.08 ± 0.30 MOSFET 4.50 ± 0.20 1.30 +0.10.
  • 0.05 0.50 +0.10.
  • 0.05 2.40.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

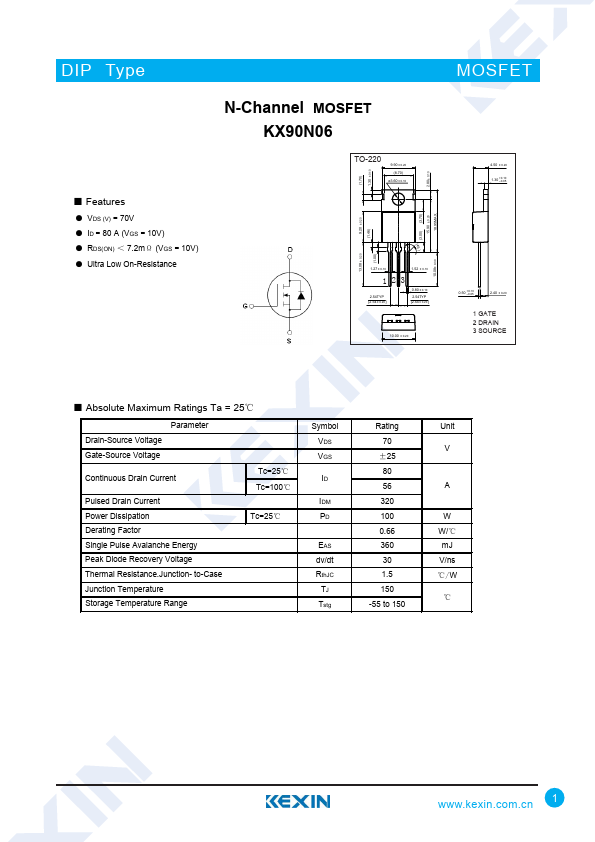

DIP Type ■ Features ● VDS (V) = 70V ● ID = 80 A (VGS = 10V) ● RDS(ON) ＜ 7.2mΩ (VGS = 10V) ● Ultra Low On-Resistance N-Channel MOSFET KX90N06 TO-220 9.90 ± 0.20 (8.70) ø3.60 ± 0.10 (1.70) 1.30 ± 0.10 9.20 ± 0.20 (1.46) (45 ) 13.08 ± 0.20 (1.00) 1.27 ± 0.10 1.52 ± 0.10 123 2.54TYP [2.54 ± 0.20 ] 0.80 ± 0.10 2.54TYP [2.54 ± 0.20 ] 10.00 ± 0.20 (3.00) (3.70) 15.90 ± 0.20 18.95MAX. 2.80 ± 0.10 10.08 ± 0.30 MOSFET 4.50 ± 0.20 1.30 +0.10 –0.05 0.50 +0.10 –0.05 2.40 ± 0.20 1 GATE 2 DRAIN 3 SOURCE ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation Derating Factor Single Pulse Avalanche Energy Peak Diode Recovery Voltage Thermal Resistance.
