KX1N60DS - N-Channel Power MOSFET

Key Features

  • s.
  • ESD improved capability.
  • Depletion mode.
  • dv/dt rated.
  • Pb-free lead plating;ROHS compliant.
  • Halogen Free +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Drain-Source Voltage VDS 600 Gate-Source Voltage VGS ±20 Continuous Drain Curr.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KX1002 Synchronous Buck DC/DC Converter KEXINWEI
KX105 GaN HEMT Transistor KCB
KX1130 Ignition Controller Keterex
KX124-1051 Tri-axis Digital Accelerometer Kionix
KX126-1063 Tri-axis Digital Accelerometer Kionix

Other Datasheets by Kexin Semiconductor

Part Number Description
KX10N60F N-Channel MOSFET
KX12N65F N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

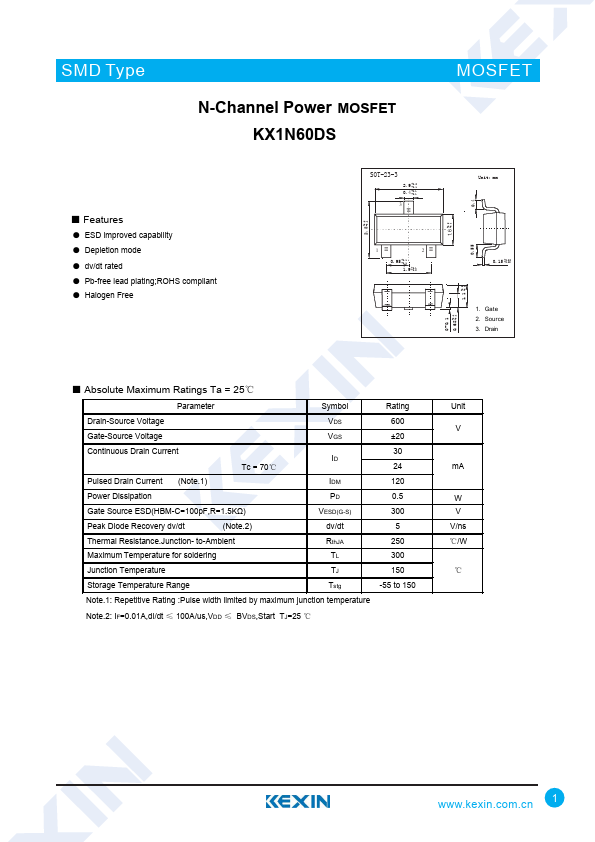

SMD Type N-Channel Power MOSFET KX1N60DS ■ Features ● ESD improved capability ● Depletion mode ● dv/dt rated ● Pb-free lead plating;ROHS compliant ● Halogen Free +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Drain-Source Voltage VDS 600 Gate-Source Voltage VGS ±20 Continuous Drain Current Pulsed Drain Current (Note.1) Tc = 70℃ 30 ID 24 IDM 120 Power Dissipation PD 0.5 Gate Source ESD(HBM-C=100pF,R=1.5KΩ) Peak Diode Recovery dv/dt (Note.2) Thermal Resistance.
