KRF7530 - Power MOSFET

Key Features

  • Trench Technology Ultra Low On-Resistance Dual N-Channel MOSFET Very Small SOIC Package Low Profile ( 1.1mm) Available in Tape & Reel ICIC Absolute Maximum Ratings Ta = 25 Parameter Symbol Drain- Source Voltage VDS Continuous Drain Current, VGS @ 4.5V,Ta = 25 ID Continuous Drain Current, VGS @ 4.5V,TA = 70 ID Pulsed Drain Current.
  • 1 IDM Power Dissipation Ta = 25 PD Power Dissipation Ta = 70 PD Linear Derating Factor Single Pulse Avalanche Energy.
  • 2 EAS Gate-to-Source V.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KRF-V6300D AUDIO VIDEO CONTROL CENTER INSTRUCTION MANUAL Kenwood
KRF-V7050D Audio Video Surround Receiver Kenwood
KRF-V7510D AV SURROUND RECEIVER SERVICE MANUAL Kenwood
KRF-V8010D AV SURROUND RECEIVER SERVICE MANUAL Kenwood
KRF-X9070D AUDIO VIDEO SURROUND RECEIVER MANUAL Kenwood

Other Datasheets by Kexin Semiconductor

Part Number Description
KRF7501 Power MOSFET
KRF7503 Power MOSFET
KRF7504 Power MOSFET
KRF7506 Power MOSFET
KRF7507 Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

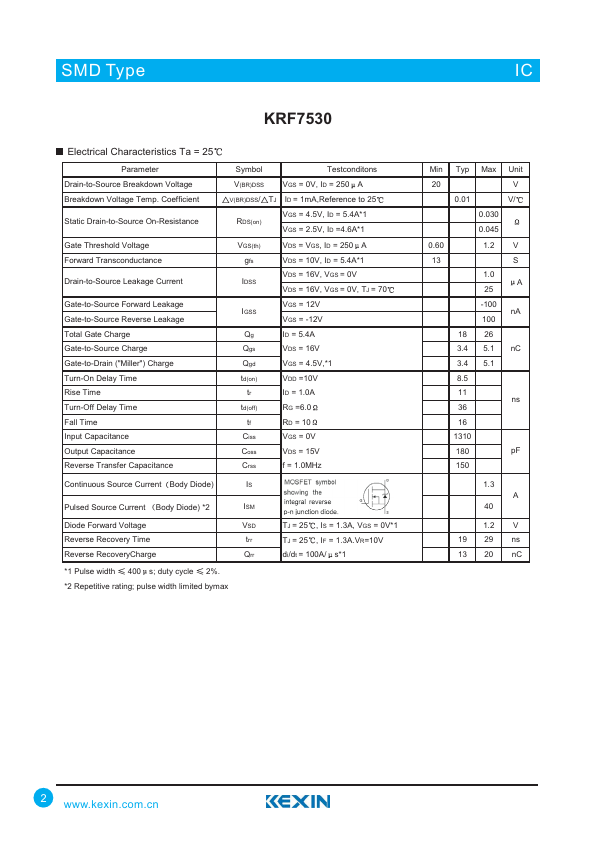

SMD Type HEXFET Power MOSFET KRF7530 Features Trench Technology Ultra Low On-Resistance Dual N-Channel MOSFET Very Small SOIC Package Low Profile ( 1.1mm) Available in Tape & Reel ICIC Absolute Maximum Ratings Ta = 25 Parameter Symbol Drain- Source Voltage VDS Continuous Drain Current, VGS @ 4.5V,Ta = 25 ID Continuous Drain Current, VGS @ 4.5V,TA = 70 ID Pulsed Drain Current*1 IDM Power Dissipation Ta = 25 PD Power Dissipation Ta = 70 PD Linear Derating Factor Single Pulse Avalanche Energy *2 EAS Gate-to-Source Voltage VGS Junction and Storage Temperature Range TJ, TSTG Junction-to-Ambient *1 R JA 1* Surface mounted on FR-4 board, t 10sec. *2 Starting TJ = 25 , L = 2.6mH,RG = 25 , IAS = 5.0A. Rating 20 5.4 4.3 40 1.3 0.
