KI3055DY - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 60V.
  • ID = 6 A (VGS = 10V).
  • RDS(ON) ＜ 150mΩ (VGS = 10V) D G S +0.04 0.21 -0.02 SOP-8 MOSFET 1.50 0.15 1~3.Source 4.Gate 5~8.Drain.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current TA=25℃ TA=70℃ Pulsed Drain Current (tp ≤ 10 ms) Power Dissipation TA=25℃ (Note.1) (Note.2) Single Pulse Drain.
  • to.
  • Source Avalanche Energy.
  • Starting TJ = 25°C Thermal Resistance. Junction- to-.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KI3800 Optical Light Source Kingfisher

Other Datasheets by Kexin Semiconductor

Part Number Description
KI30N03DFN N-Channel MOSFET
KI30P03DFN P-Channel MOSFET
KI3437DV P-Channel MOSFET
KI3437DV-HF P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

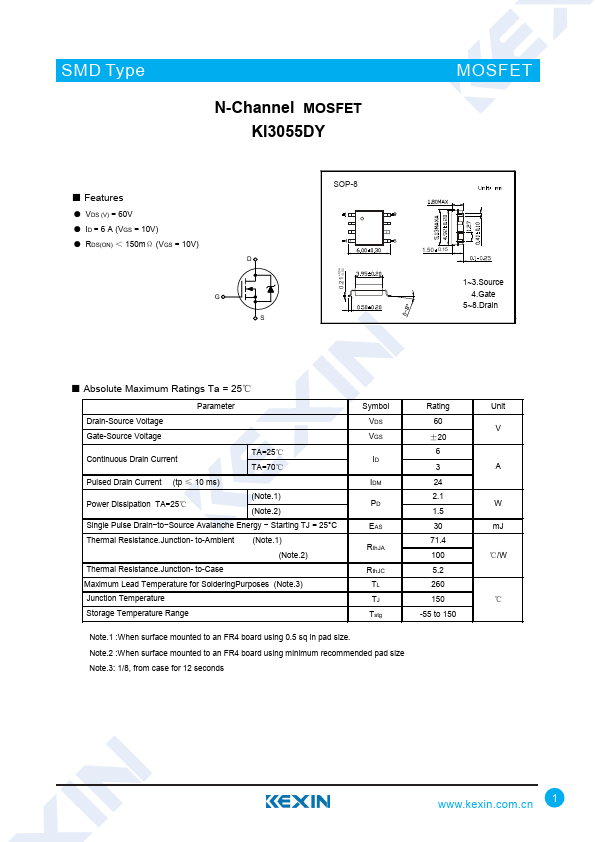

SMD Type N-Channel MOSFET KI3055DY ■ Features ● VDS (V) = 60V ● ID = 6 A (VGS = 10V) ● RDS(ON) ＜ 150mΩ (VGS = 10V) D G S +0.04 0.21 -0.02 SOP-8 MOSFET 1.50 0.15 1~3.Source 4.Gate 5~8.Drain ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current TA=25℃ TA=70℃ Pulsed Drain Current (tp ≤ 10 ms) Power Dissipation TA=25℃ (Note.1) (Note.2) Single Pulse Drain−to−Source Avalanche Energy − Starting TJ = 25°C Thermal Resistance.Junction- to-Ambient (Note.1) (Note.2) Thermal Resistance.Junction- to-Case Maximum Lead Temperature for SolderingPurposes (Note.3) Junction Temperature Storage Temperature Range Symbol VDS VGS ID IDM PD EAS RthJA RthJC TL TJ Tstg Rating 60 ±20 6 3 24 2.1 1.5 30 71.4 100 5.
