KI2310 - N-Channel Enhancement MOSFET

Key Features

  • s.
  • VDS=20V.
  • ID = 6 .5A.
  • RDS(on)= 22mΩ@VGS=4.5V ,ID=6.5A.
  • RDS(on)= 30mΩ@VGS=2.5V ,ID=5.5A G1 S2 3D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.38 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current TA=25℃ TA=70℃ Power Dissipation.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Kexin Semiconductor

Part Number Description
KI2310DS N-Channel MOSFET
KI2300 N-Channel FET
KI2301 P-Channel MOSFET
KI2301DS P-Channel MOSFET
KI2301DS-HF P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

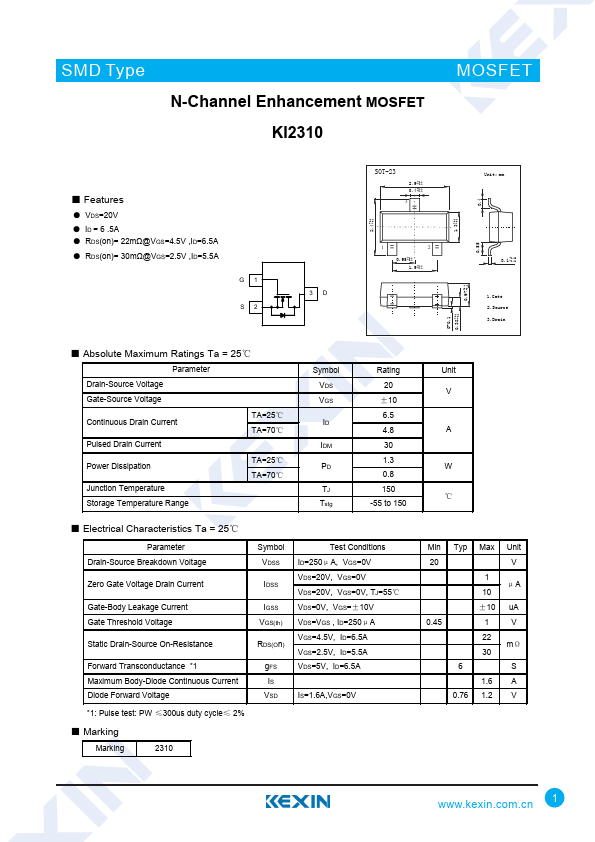

SMD Type N-Channel Enhancement MOSFET KI2310 MOSFET ■ Features ● VDS=20V ● ID = 6 .5A ● RDS(on)= 22mΩ@VGS=4.5V ,ID=6.5A ● RDS(on)= 30mΩ@VGS=2.5V ,ID=5.5A G1 S2 3D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.38 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current TA=25℃ TA=70℃ Power Dissipation Junction Temperature TA=25℃ TA=70℃ Storage Temperature Range Symbol VDS VGS ID IDM PD TJ Tstg Rating 20 ±10 6.5 4.8 30 1.3 0.
