KDD3680 - 100V N-Channel Power Trench MOSFET

Key Features

  • 25 A, 100 V. RDS(ON) = 46m @ VGS = 10 V RDS(ON) = 51m @ VGS = 6 V Low gate charge (38 nC typical) Fast switching speed High performance trench technology for extremely low RDS(ON) High power and current handling capability +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.1 1. Gate 2. Drain 3. Source.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KDD3020AD FAST RECOVER DIODE KEDA
KDD3060AD FAST RECOVER DIODE KEDA
KDD1560F FAST RECOVER DIODE KEDA
KDD20120P FAST RECOVER DIODE KEDA
KDD25 DC-DC CONVERTER Chinfa

Other Datasheets by Kexin Semiconductor

Part Number Description
KDD3670 100V N-Channel PowerTrench MOSFET
KDD2572 N-Channel PowerTrench MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

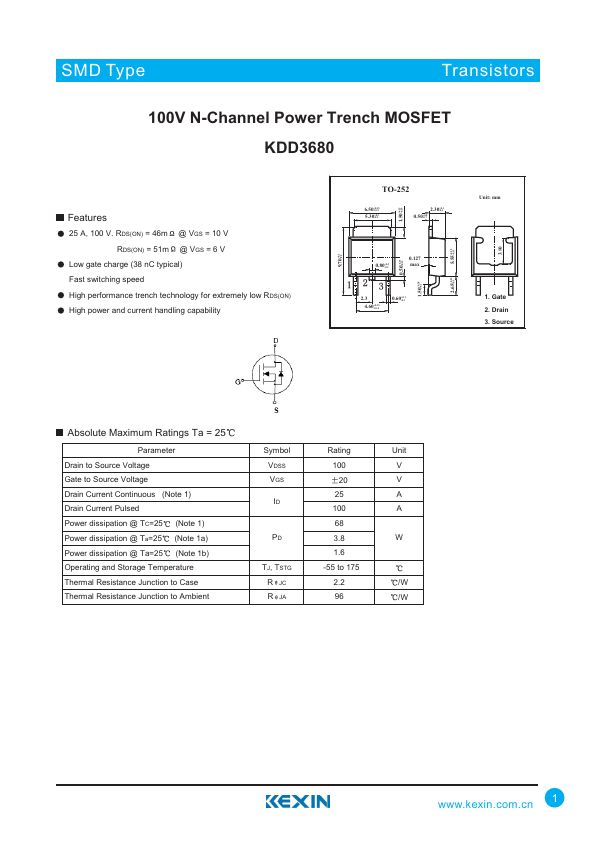

SMD Type TransistIoCrs 100V N-Channel Power Trench MOSFET KDD3680 Features 25 A, 100 V. RDS(ON) = 46m @ VGS = 10 V RDS(ON) = 51m @ VGS = 6 V Low gate charge (38 nC typical) Fast switching speed High performance trench technology for extremely low RDS(ON) High power and current handling capability +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.1 1. Gate 2. Drain 3.
