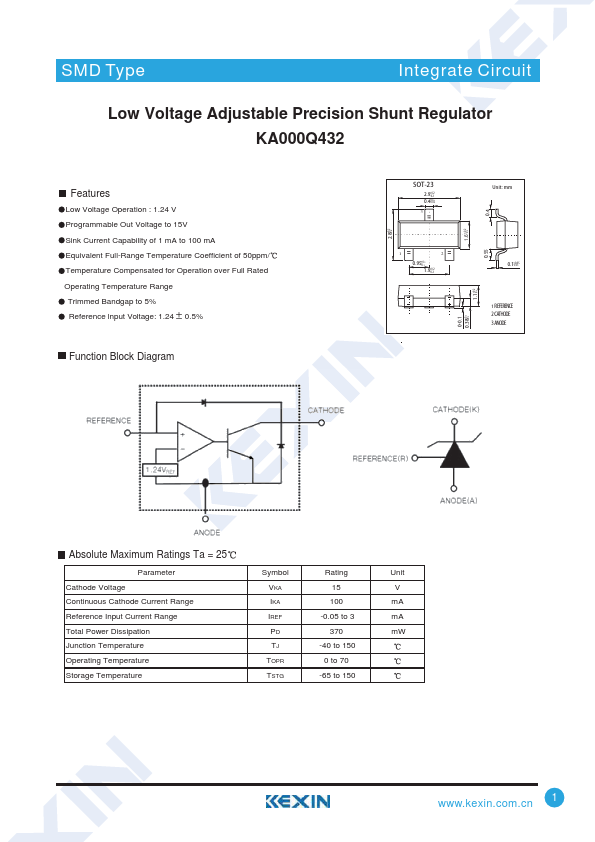

KA000Q432 - Low Voltage Adjustable Precision Shunt Regulator

Features

  • Low Voltage Operation : 1.24 V Programmable Out Voltage to 15V Sink Current Capability of 1 mA to 100 mA Equivalent Full-Range Temperature Coefficient of 50ppm/ Temperature Compensated for Operation over Full Rated Operating Temperature Range Trimmed Bandgap to 5% Reference lnput Voltage: 1.24  0.5% Function Block Diagram    405       3 1 2            1.6       6OJU NN    .

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KA00HF AC Solid-State Relay TELEDYNE

Other Datasheets by Kexin Semiconductor

Part Number Description
KA000Q431 Adjustable Accurate Reference Source
KA080Q05 Three-Terminal Positive Voltage Regulator
KA080Q06 Three-Terminal Positive Voltage Regulator
KA080Q08 Three-Terminal Positive Voltage Regulator
KA090Q05 Three-Terminal Negative Voltage Regulator

Full PDF Text Transcription

Click to expand full text
SMD Type Integrate Circuit Low Voltage Adjustable Precision Shunt Regulator KA000Q432 Features Low Voltage Operation : 1.24 V Programmable Out Voltage to 15V Sink Current Capability of 1 mA to 100 mA Equivalent Full-Range Temperature Coefficient of 50ppm/ Temperature Compensated for Operation over Full Rated Operating Temperature Range Trimmed Bandgap to 5% Reference lnput Voltage: 1.24  0.5% Function Block Diagram    405       3 1 2            1.
