IRLML2502 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 20V.
  • ID = 4.2 A.
  • RDS(ON) ＜ 45mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 80mΩ (VGS = 2.5V).
  • Fast Switching G1 S2 3D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipati.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IRLML2502 HEXFET Power MOSFET International Rectifier
IRLML2502GPBF HEXFET Power MOSFET International Rectifier
IRLML2502GTRPBF N-Channel MOSFET VBsemi
IRLML2502PBF POWER MOSFET International Rectifier
IRLML2502PBF-1 POWER MOSFET International Rectifier

Other Datasheets by Kexin Semiconductor

Part Number Description
IRLML0060 N-Channel MOSFET
IRLML0100 N-Channel MOSFET
IRLML5203 P-Channel MOSFET
IRLML6401 P-Channel Enhancement MOSFET
IRLML6402 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

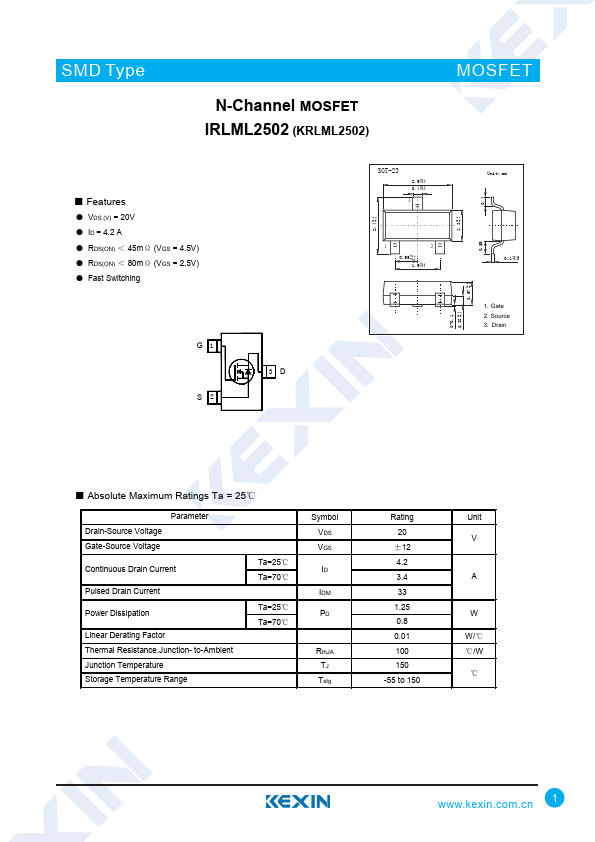

SMD Type N-Channel MOSFET IRLML2502 (KRLML2502) MOSFET ■ Features ● VDS (V) = 20V ● ID = 4.2 A ● RDS(ON) ＜ 45mΩ (VGS = 4.5V) ● RDS(ON) ＜ 80mΩ (VGS = 2.5V) ● Fast Switching G1 S2 3D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation Linear Derating Factor Thermal Resistance.Junction- to-Ambient Junction Temperature Storage Temperature Range Ta=25℃ Ta=70℃ Ta=25℃ Ta=70℃ Symbol VDS VGS ID IDM PD RthJA TJ Tstg Rating 20 ±12 4.2 3.4 33 1.25 0.8 0.
