FK8V03050 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 33V.
  • ID = 8 A (VGS = 10V).
  • RDS(ON) ＜ 15mΩ (VGS = 10V).
  • RDS(ON) ＜ 25mΩ (VGS = 4.5V).
  • High-speed switching : Qg = 5.1 nC (D) (D) (D) (D) 8765 DFN3X3-8 2.900(0.114) 3.100(0.122) Pin 1 Dot by Marking 0.700(0.028) 0.800(0.031) 0.180(0.007) 0.300(0.012) N5 0.650(0.026) BSC N8 0.375(0.015) 0.575(0.023) 2.900(0.114) 1.400(0.055) 3.100(0.122) 1.600(0.063) N4 0.153(0.006) 0.253(0.010) 0.000(0.000) 0.050(0.002) 2.200(0.087) 2.400(0.094) PIN #1.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FK8V0305 Silicon N-channel MOS FET Panasonic
FK8V03030L Silicon N-channel MOSFET Panasonic
FK8V0304 Silicon N-channel MOS FET Panasonic
FK8V03060L Silicon N-channel MOS FET Panasonic

Other Datasheets by Kexin Semiconductor

Part Number Description
FK8V03040 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

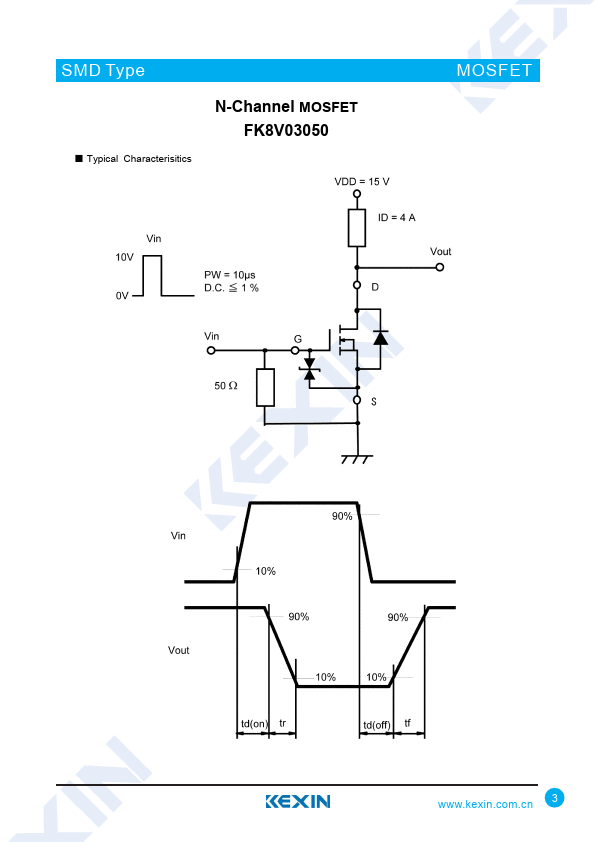

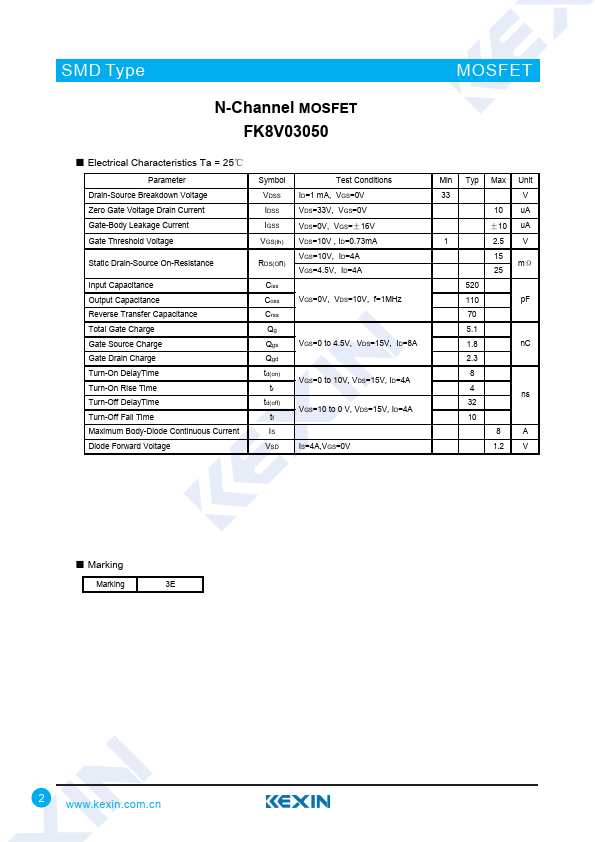

SMD Type N-Channel MOSFET FK8V03050 MOSFET ■ Features ● VDS (V) = 33V ● ID = 8 A (VGS = 10V) ● RDS(ON) ＜ 15mΩ (VGS = 10V) ● RDS(ON) ＜ 25mΩ (VGS = 4.5V) ● High-speed switching : Qg = 5.1 nC (D) (D) (D) (D) 8765 DFN3X3-8 2.900(0.114) 3.100(0.122) Pin 1 Dot by Marking 0.700(0.028) 0.800(0.031) 0.180(0.007) 0.300(0.012) N5 0.650(0.026) BSC N8 0.375(0.015) 0.575(0.023) 2.900(0.114) 1.400(0.055) 3.100(0.122) 1.600(0.063) N4 0.153(0.006) 0.253(0.010) 0.000(0.000) 0.050(0.002) 2.200(0.087) 2.400(0.094) PIN #1 IDENTIFICATION N1 Unit: mm(inch) 0.18 0.40 2.40 0.65 2.50 1234 (S) (S) (S) (G) 1.60 0.
