FDT457N - N-Channel MOSFET

Key Features

  • ƽ 5 A, 30 V. RDS(ON) = 0.06 ȍ @ VGS = 10 V RDS(ON) = 0.09 ȍ @ VGS = 4.5 V. ƽ High density cell design for extremely low RDS(ON). ƽ High power and current handling capability in a widely used surface mount package. SOT-223 6.50±0.2 3.00±0.1 4 10b Unit:mm 7.0±0.3 3.50±0.2 0.75 (min) 1 2 3 D G D S 1.80 (max) 0.02 ~ 0.1 1.6 ± 0.1 2.30 (typ) 4.60 (typ) 0.84 (max) 0.66 (min) 0.250 Gauge Plane 1.Gate 2.Drain 3.Source 4.Drain Ƶ Absolute Maximum Ratings TA = 25ć unless otherwise noted.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FDT457N N-Channel MOSFET Fairchild Semiconductor
FDT457N N-Channel MOSFET ON Semiconductor
FDT458P 30V P-Channel MOSFET Fairchild Semiconductor
FDT459N N-Channel MOSFET Fairchild Semiconductor
FDT434P P-Channel MOSFET Fairchild Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
FDT86102LZ N-Channel MOSFET
FDT86244 N-Channel Enhancement MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

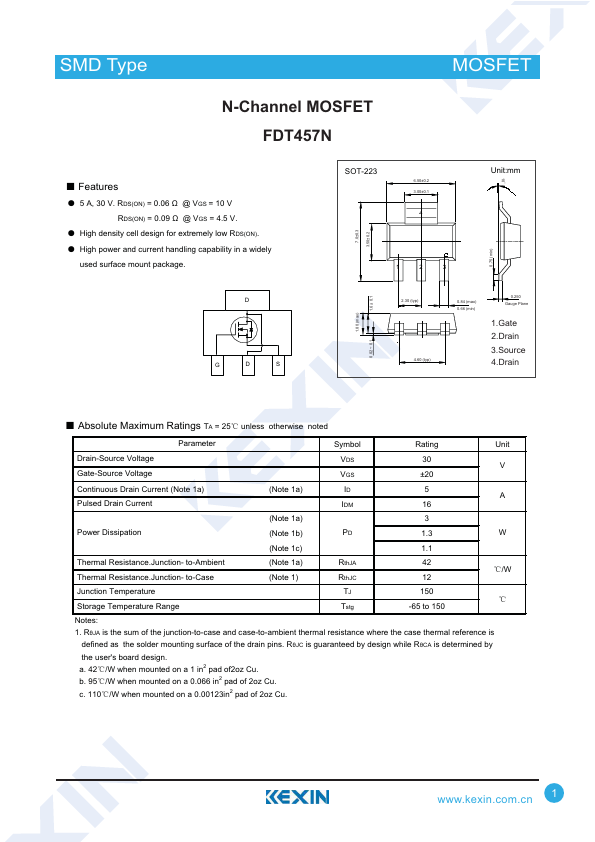

SMD Type N-Channel MOSFET FDT457N TraMnOsiSsFtoErsT Ƶ Features ƽ 5 A, 30 V. RDS(ON) = 0.06 ȍ @ VGS = 10 V RDS(ON) = 0.09 ȍ @ VGS = 4.5 V. ƽ High density cell design for extremely low RDS(ON). ƽ High power and current handling capability in a widely used surface mount package. SOT-223 6.50±0.2 3.00±0.1 4 10b Unit:mm 7.0±0.3 3.50±0.2 0.75 (min) 1 2 3 D G D S 1.80 (max) 0.02 ~ 0.1 1.6 ± 0.1 2.30 (typ) 4.60 (typ) 0.84 (max) 0.66 (min) 0.250 Gauge Plane 1.Gate 2.Drain 3.Source 4.
