FDS2672 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 200V.
  • ID = 3.9A (VGS = 10V).
  • RDS(ON) ＜ 70mΩ (VGS = 10V).
  • RDS(ON) ＜ 80mΩ (VGS = 6V) 5 6 7 8 SOP-8 4 3 2 1 +0.04 0.21 -0.02 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current -Continuous Pulsed Drain Current Single Pulse Avalanche Energy (Note.1) Power Dissipation (Note.2) (Note.3) Thermal Resistance. Junction-.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FDS2672 N-Channel UltraFET Fairchild Semiconductor
FDS2672 N-Channel MOSFET ON Semiconductor
FDS2670 N-Channel MOSFET Fairchild Semiconductor
FDS2070N3 N-Channel MOSFET Fairchild Semiconductor
FDS2070N7 N-Channel MOSFET Fairchild Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
FDS6930B Dual N-Channel MOSFET
FDS89161 N-Channel Enhancement MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

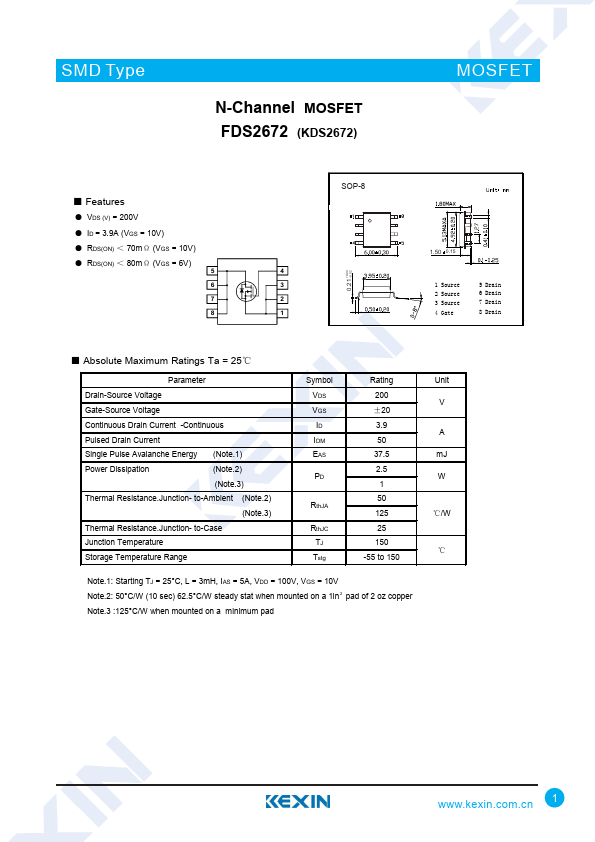

SMD Type N-Channel MOSFET FDS2672 (KDS2672) MOSFET ■ Features ● VDS (V) = 200V ● ID = 3.9A (VGS = 10V) ● RDS(ON) ＜ 70mΩ (VGS = 10V) ● RDS(ON) ＜ 80mΩ (VGS = 6V) 5 6 7 8 SOP-8 4 3 2 1 +0.04 0.21 -0.02 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current -Continuous Pulsed Drain Current Single Pulse Avalanche Energy (Note.1) Power Dissipation (Note.2) (Note.3) Thermal Resistance.Junction- to-Ambient (Note.2) (Note.3) Thermal Resistance.Junction- to-Case Junction Temperature Storage Temperature Range Symbol VDS VGS ID IDM EAS PD RthJA RthJC TJ Tstg Rating 200 ±20 3.9 50 37.5 2.5 1 50 125 25 150 -55 to 150 Note.
