BC846B Datasheet NPN General Purpose Transistor

Manufacturer: Kexin Semiconductor

Download the BC846B datasheet PDF. This datasheet also includes the BC846 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

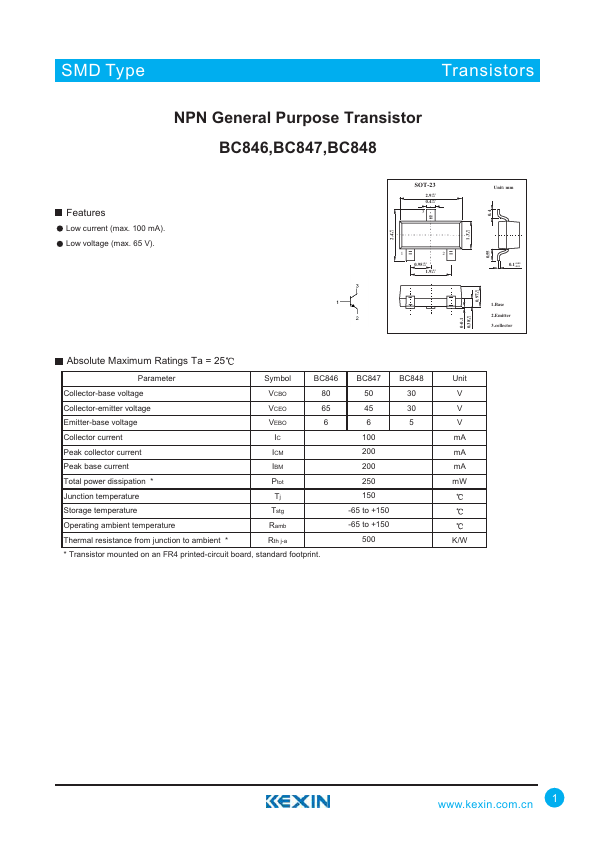

BC846B npn general purpose transistor by Kexin Semiconductor - Datasheet Preview — Note: The manufacturer provides a single datasheet file (BC846-Kexin.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	BC846B
Manufacturer	Kexin Semiconductor
File Size	37.70 KB
Description	NPN General Purpose Transistor
Download	BC846B Download (PDF)

Overview

SMD Type TransistIoCrs NPN General Purpose Transistor BC846,BC847,BC848.

Key Features

Low current (max. 100 mA). Low voltage (max. 65 V). +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 +0.1 0.97 -0.1 0-0.1 +0.1 0.38 -0.1 1.Base 2.Emitter 3.collector Absolute Maximum Ratings Ta = 25 Parameter Symbol BC846 BC847 BC848 Unit Collector-base voltage VCBO 80 50 30 V Collector-emitter voltage VCEO 65 45 30 V Emitter-base voltage VEBO 6 6 5 V Collector current IC 100 mA.
