AOI444 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 60V.
  • ID = 12 A (VGS = 10V).
  • RDS(ON) ＜ 60mΩ (VGS = 10V).
  • RDS(ON) ＜ 85mΩ (VGS = 4.5V) D 1 23 123 G S.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Tc=25℃ Continuous Drain Current Tc=100℃ Ta=25℃ Pulsed Drain Current Avalanche Current Avalanche energy L=0.1mH Ta=70℃ Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resistance. Junction- to-Case Junction Temperature Storage Temperature Range.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AOI444 N-Channel MOSFET INCHANGE
AOI444 60V N-Channel MOSFET Alpha & Omega Semiconductors
AOI442 60V N-Channel MOSFET Alpha & Omega Semiconductors
AOI442 N-Channel MOSFET INCHANGE
AOI403 P-Channel MOSFET INCHANGE

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

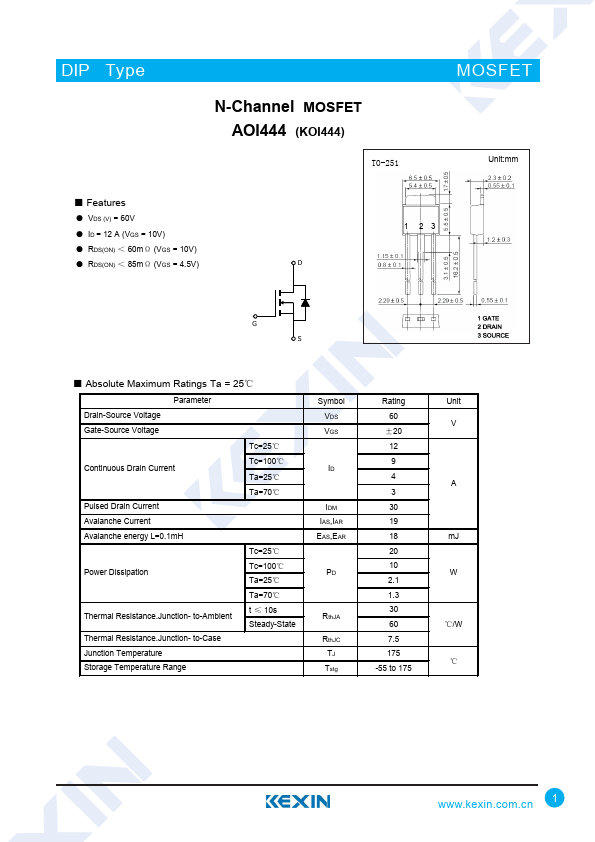

DIP Type N-Channel MOSFET AOI444 (KOI444) TO-251 MOSFET Unit:mm ■ Features ● VDS (V) = 60V ● ID = 12 A (VGS = 10V) ● RDS(ON) ＜ 60mΩ (VGS = 10V) ● RDS(ON) ＜ 85mΩ (VGS = 4.5V) D 1 23 123 G S ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Tc=25℃ Continuous Drain Current Tc=100℃ Ta=25℃ Pulsed Drain Current Avalanche Current Avalanche energy L=0.1mH Ta=70℃ Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Case Junction Temperature Storage Temperature Range Tc=25℃ Tc=100℃ Ta=25℃ Ta=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM IAS,IAR EAS,EAR PD RthJA RthJC TJ Tstg Rating 60 ±20 12 9 4 3 30 19 18 20 10 2.1 1.3 30 60 7.5 175 -55 to 175 Unit V A mJ W ℃/W ℃ www.kexin.com.
