AOD464 - N-Channel Enhancement MOSFET

Key Features

  • s.
  • VDS (V) =105V.
  • ID = 40A (VGS = 10V).
  • RDS(ON) ＜ 28mΩ (VGS = 10V) @20A.
  • RDS(ON) ＜ 31mΩ (VGS = 6V) TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 +0 1.50 .15 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm + 5.55 0.15 -0.15 0.80+0.1 -0.1 0.127 m ax + 2.65 0.25 -0.1 + 0.50 0.15 -0.15 + 1.50 0.28 -0.1 +0 9.70 .2 -0.2 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 1 Gate 2 Drain 3 Source 4 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Paramet.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AOD464 105V N-Channel MOSFET Alpha & Omega Semiconductors
AOD464 N-Channel MOSFET INCHANGE
AOD464 N-Channel MOSFET VBsemi
AOD460 N-Channel MOSFET Alpha & Omega Semiconductors
AOD466 N-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

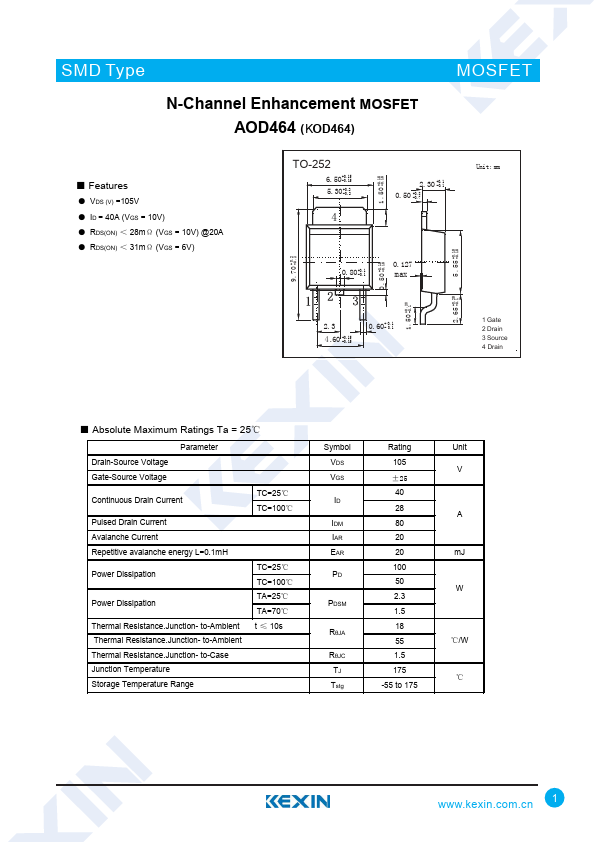

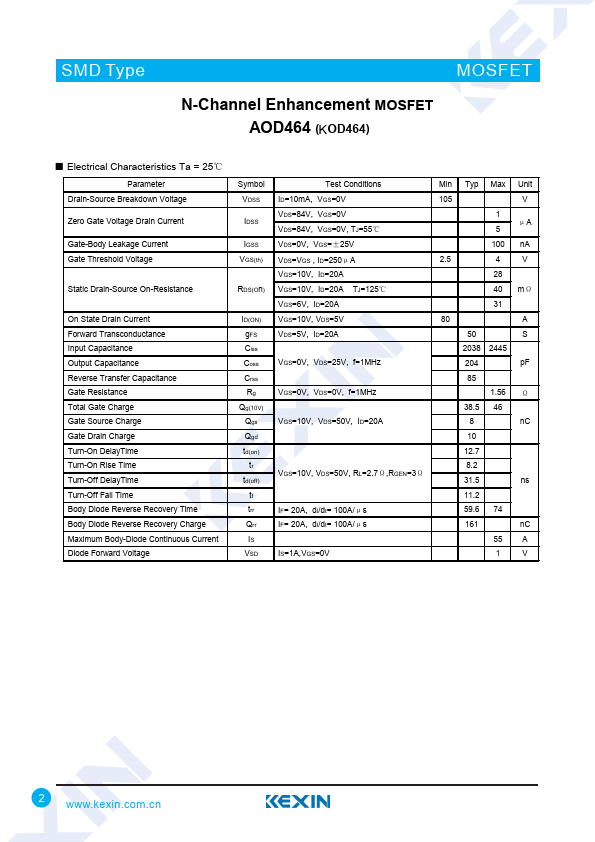

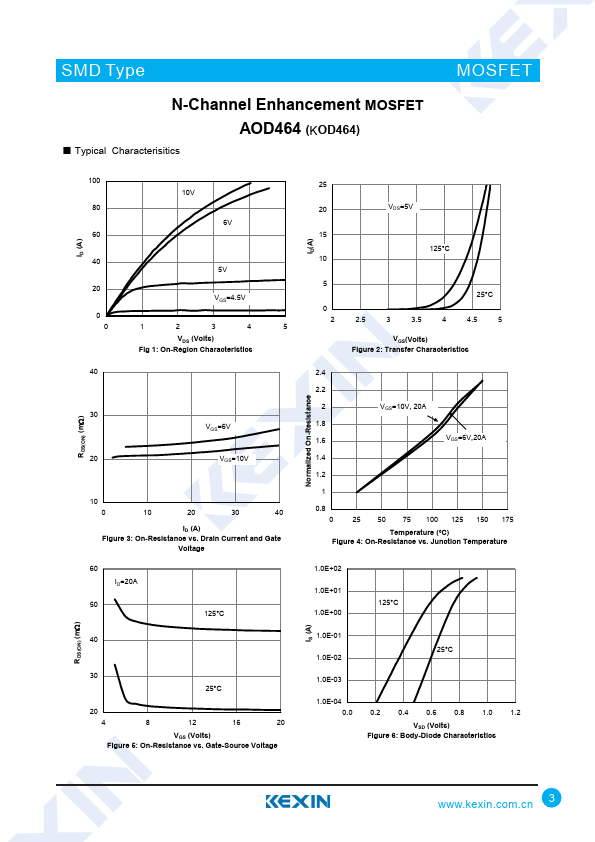

SMD Type N-Channel Enhancement MOSFET AOD464 (KOD464) MOSFET ■ Features ● VDS (V) =105V ● ID = 40A (VGS = 10V) ● RDS(ON) ＜ 28mΩ (VGS = 10V) @20A ● RDS(ON) ＜ 31mΩ (VGS = 6V) TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 +0 1.50 .15 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm + 5.55 0.15 -0.15 0.80+0.1 -0.1 0.127 m ax + 2.65 0.25 -0.1 + 0.50 0.15 -0.15 + 1.50 0.28 -0.1 +0 9.70 .2 -0.2 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 1 Gate 2 Drain 3 Source 4 Drain ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Repetitive avalanche energy L=0.1mH TC=25℃ TC=100℃ Power Dissipation Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
