AO4824L-HF - Dual N-Channel MOSFET

Key Features

  • s N-Channel 1.
  • VDS (V) = 30V.
  • ID = 8.5A (VGS = 10V).
  • RDS(ON) ＜ 17mΩ (VGS = 10V).
  • RDS(ON) ＜ 27mΩ (VGS = 4.5V) N-Channel 2.
  • VDS (V) = 30V.
  • ID = 9.8A (VGS = 10V).
  • RDS(ON) ＜ 13mΩ (VGS = 10V).
  • RDS(ON) ＜ 15mΩ (VGS = 4.5V).
  • Pb.
  • Free Package May be Available. The G.
  • Suffix Denotes a Pb.
  • Free Lead Finish D1 D2 +0.04 0.21 -0.02 SOP-8 MOSFET Unit:mm 1.50 0.15 1 S2 2 G2 3 S1 4 G1 5 D1 6 D1 7 D2 8 D2 G1 G2 S1 S2.
  • Absolute Ma.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4824L 30V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4824 30V Dual N-Channel MOSFET VBsemi
AO4824 Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4821 Dual P-Channel MOSFET Alpha & Omega Semiconductors
AO4821 20V Dual P-Channel MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4824L Dual N-Channel MOSFET
AO4821 Dual P-Channel MOSFET
AO4822 Dual N-Channel MOSFET
AO4822A Dual N-Channel MOSFET
AO4828 Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

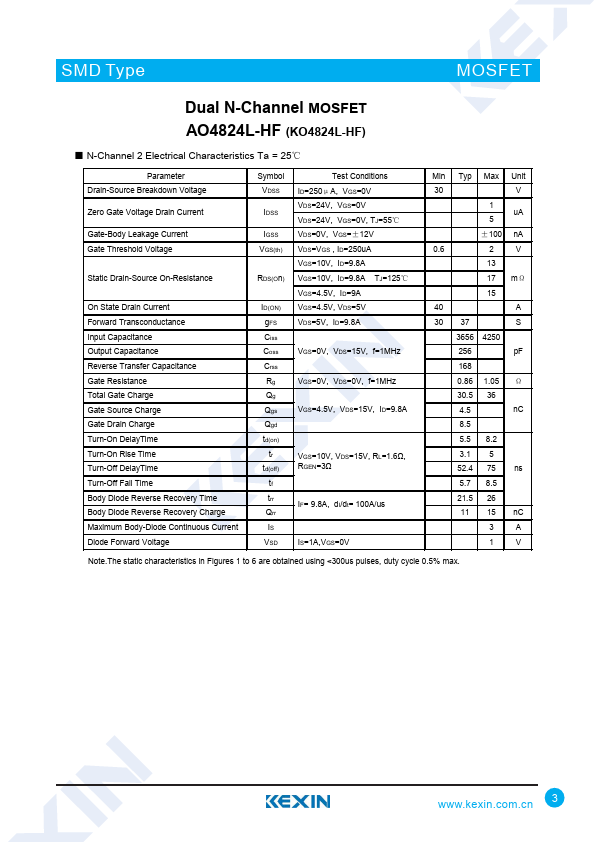

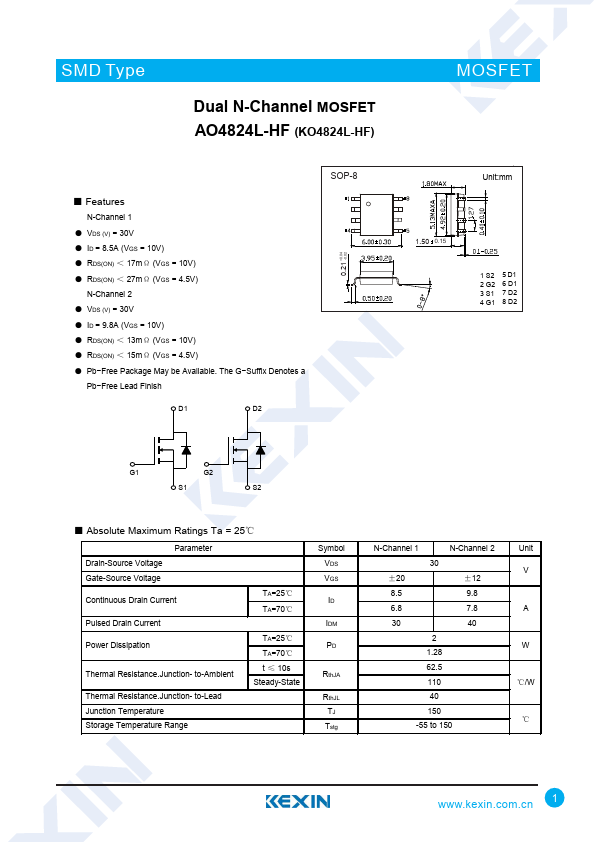

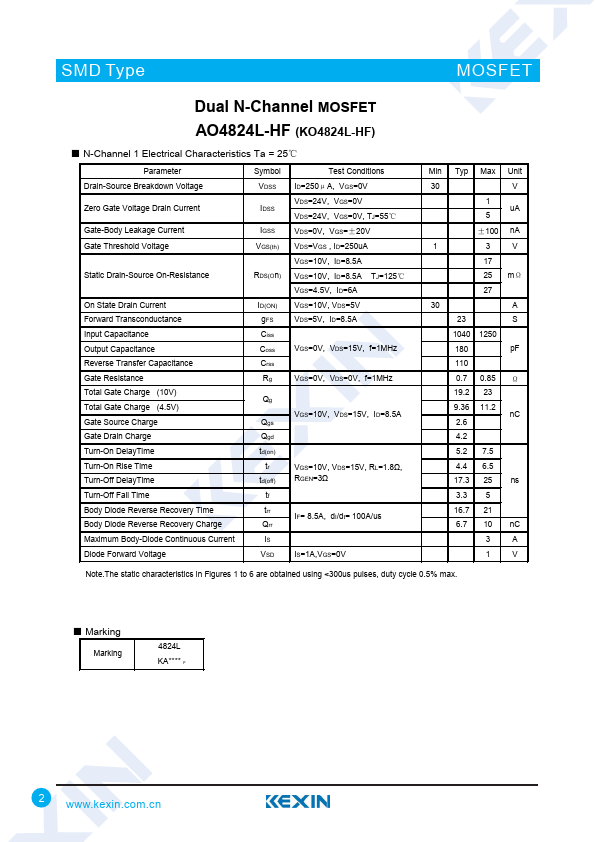

SMD Type Dual N-Channel MOSFET AO4824L-HF (KO4824L-HF) ■ Features N-Channel 1 ● VDS (V) = 30V ● ID = 8.5A (VGS = 10V) ● RDS(ON) ＜ 17mΩ (VGS = 10V) ● RDS(ON) ＜ 27mΩ (VGS = 4.5V) N-Channel 2 ● VDS (V) = 30V ● ID = 9.8A (VGS = 10V) ● RDS(ON) ＜ 13mΩ (VGS = 10V) ● RDS(ON) ＜ 15mΩ (VGS = 4.5V) ● Pb−Free Package May be Available. The G−Suffix Denotes a Pb−Free Lead Finish D1 D2 +0.04 0.21 -0.02 SOP-8 MOSFET Unit:mm 1.50 0.15 1 S2 2 G2 3 S1 4 G1 5 D1 6 D1 7 D2 8 D2 G1 G2 S1 S2 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current TA=25℃ TA=70℃ Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
