AO4566 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 12 A (VGS = 10V).
  • RDS(ON) ＜ 11mΩ (VGS = 10V).
  • RDS(ON) ＜ 17mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET Unit:mm 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage VDS Spike 100ns Continuous Drain Current Pulsed Drain Current Avalanche Current TA=25℃ TA=70℃ Avalanche Energy L=0.1mH Power Dissipation Thermal Resista.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4566 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO4568 30V N-Channel AlphaMOS Alpha & Omega Semiconductors
AO4576 30V N-Channel AlphaMOS Freescale
AO4576 30V N-Channel AlphaMOS Alpha & Omega Semiconductors
AO4578 30V N-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4568 N-Channel MOSFET
AO4576 N-Channel MOSFET
AO4578 N-Channel MOSFET
AO4588 N-Channel MOSFET
AO4202 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

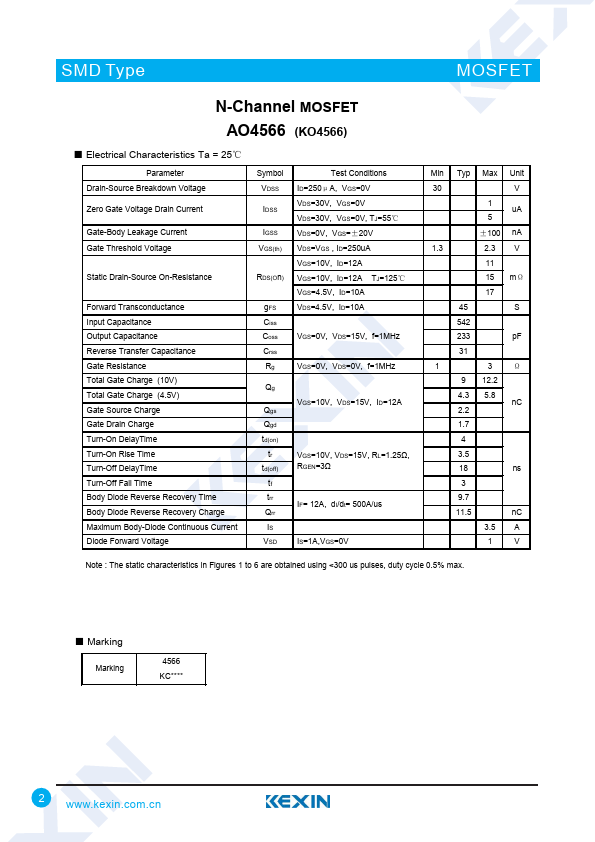

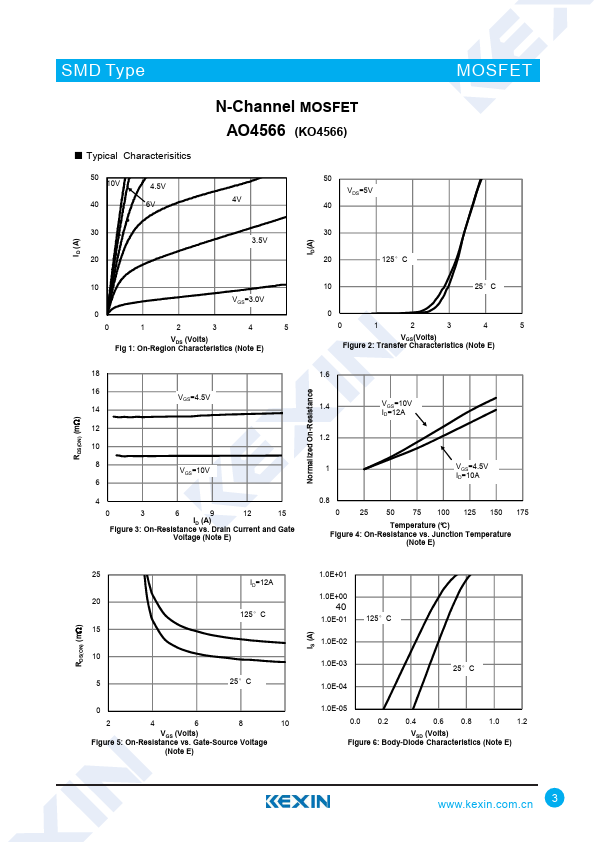

SMD Type N-Channel MOSFET AO4566 (KO4566) ■ Features ● VDS (V) = 30V ● ID = 12 A (VGS = 10V) ● RDS(ON) ＜ 11mΩ (VGS = 10V) ● RDS(ON) ＜ 17mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET Unit:mm 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage VDS Spike 100ns Continuous Drain Current Pulsed Drain Current Avalanche Current TA=25℃ TA=70℃ Avalanche Energy L=0.1mH Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS VSPIKE ID IDM IAS EAS PD RthJA RthJL TJ Tstg Rating 30 ±20 36 12 9.4 48 15 11 2.5 1.
