AO4442 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 75V.
  • ID = 3.1 A (VGS = 10V).
  • RDS(ON) ＜ 130mΩ (VGS = 10V).
  • RDS(ON) ＜ 165mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resistance. Junction- to-Lead Junction Temperature.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4442 N-Channel MOSFET Alpha & Omega Semiconductors
AO4440 N-Channel MOSFET Alpha & Omega Semiconductors
AO4441 60V P-Channel MOSFET Alpha & Omega Semiconductors
AO4441 P-Channel 60V MOSFET VBsemi
AO4443 40V P-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4440 N-Channel MOSFET
AO4444 N-Channel MOSFET
AO4446 N-Channel MOSFET
AO4447A-HF P-Channel MOSFET
AO4448 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

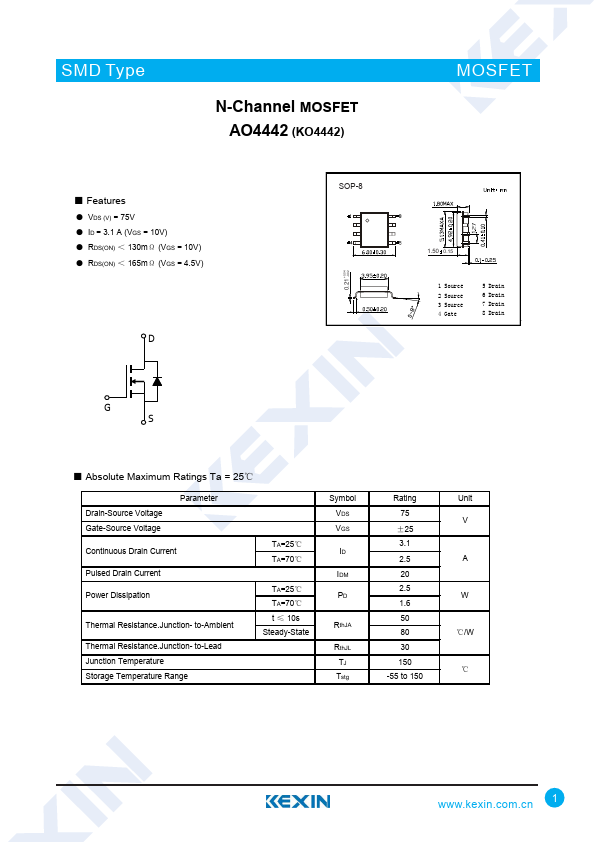

SMD Type N-Channel MOSFET AO4442 (KO4442) ■ Features ● VDS (V) = 75V ● ID = 3.1 A (VGS = 10V) ● RDS(ON) ＜ 130mΩ (VGS = 10V) ● RDS(ON) ＜ 165mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM PD RthJA RthJL TJ Tstg Rating 75 ±25 3.1 2.5 20 2.5 1.6 50 80 30 150 -55 to 150 Unit V A W ℃/W ℃ www.kexin.com.
