AO3422 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 55V.
  • ID = 2.1 A (VGS = 4.5V).
  • RDS(ON) ＜ 160mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 200mΩ (VGS = 2.5V) D +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 G S.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation T.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO3422 N-Channel MOSFET Alpha & Omega Semiconductors
AO3420 N-CHANNEL MOSFET BLUE ROCKET ELECTRONICS
AO3420 20V N-Channel MOSFET Oucan Semi
AO3420 N-Channel MOSFET Alpha & Omega Semiconductors
AO3421 30V P-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO3420 N-Channel MOSFET
AO3421 P-Channel MOSFET
AO3421E-HF P-Channel MOSFET
AO3423 P-Channel MOSFET
AO3423-HF P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

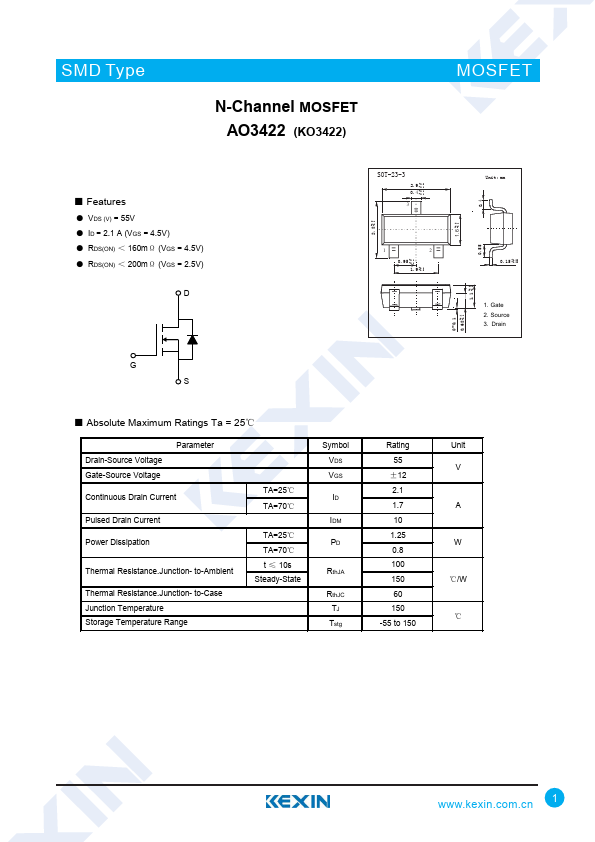

SMD Type N-Channel MOSFET AO3422 (KO3422) MOSFET ■ Features ● VDS (V) = 55V ● ID = 2.1 A (VGS = 4.5V) ● RDS(ON) ＜ 160mΩ (VGS = 4.5V) ● RDS(ON) ＜ 200mΩ (VGS = 2.5V) D +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 G S ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Case Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM PD RthJA RthJC TJ Tstg Rating 55 ±12 2.1 1.7 10 1.25 0.
