2SK3299 - MOS Field Effect Transistor

Key Features

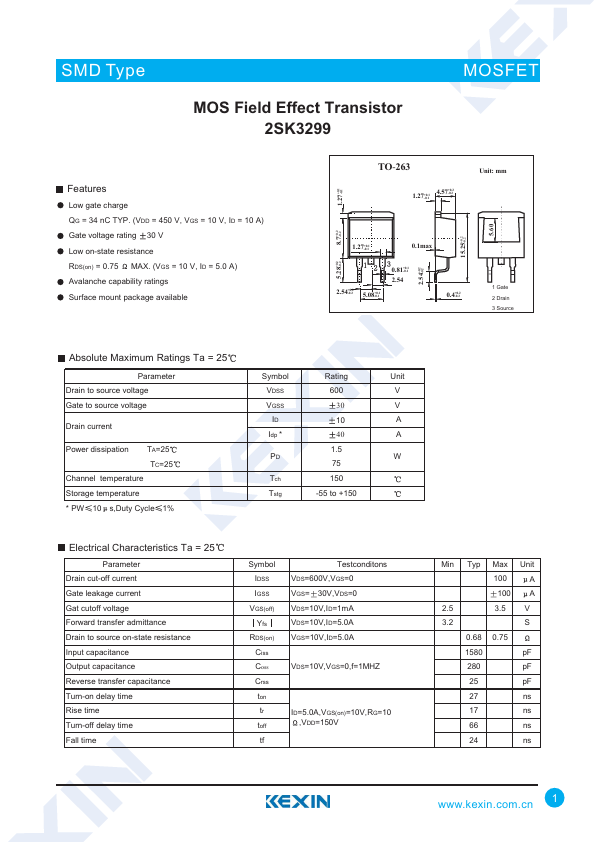

  • Low gate charge QG = 34 nC TYP. (VDD = 450 V, VGS = 10 V, ID = 10 A) Gate voltage rating 30 V Low on-state resistance RDS(on) = 0.75 MAX. (VGS = 10 V, ID = 5.0 A) Avalanche capability ratings Surface mount package available +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta =.
