2SK2329S - Silicon N-Channel MOSFET

Key Features

  • Low on-resistance High speed switching Low drive current 2.5 V gate drive device can be driven from 3 V source Suitable for Switching regulator, DC-DC converter +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 3.80 +0.25 2.65 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to source volta.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK2329S Silicon N-Channel MOSFET Hitachi Semiconductor
2SK2329 Silicon N-Channel MOSFET Hitachi Semiconductor
2SK2329L Silicon N-Channel MOSFET Hitachi Semiconductor
2SK2320 N-Channel MOSFET Toshiba
2SK2324 Silicon N-Channel Power F-MOS Panasonic

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK2033 N-Channel MOSFET
2SK2059S Silicon N-Channel MOSFET
2SK2084S Silicon N-Channel MOSFET
2SK2111 MOS Field Effect Transistor
2SK2111-HF N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

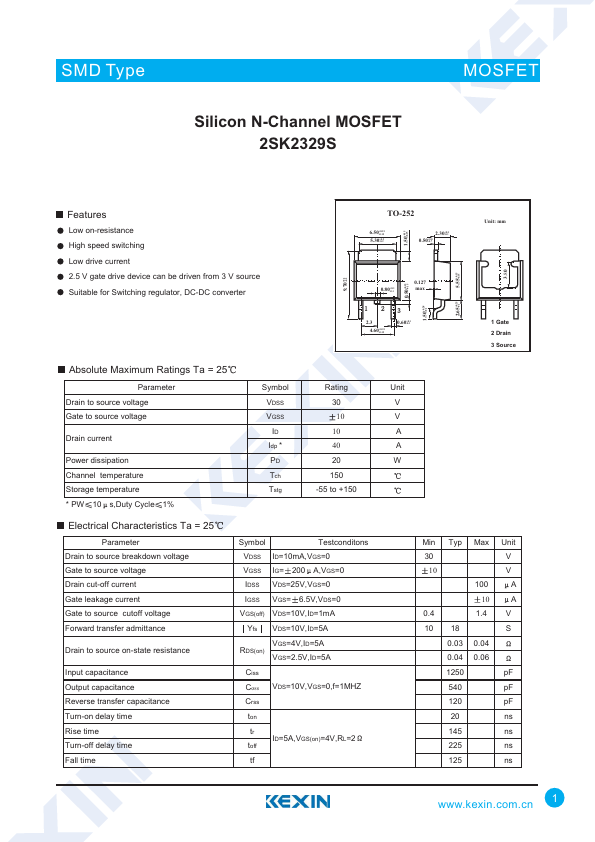

SMD Type Silicon N-Channel MOSFET 2SK2329S MOSFICET Features Low on-resistance High speed switching Low drive current 2.5 V gate drive device can be driven from 3 V source Suitable for Switching regulator, DC-DC converter +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 3.80 +0.25 2.65 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 2.3 4.60+0.15 -0.15 0.60+0.1 -0.
