2SJ209 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-100V.
  • ID =-0.1 A.
  • RDS(ON) ＜ 60Ω (VGS =-10V).
  • RDS(ON) ＜ 100Ω (VGS =-4V) P-Channel MOSFET 2SJ209 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 +0.1 2.4 -0.1 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.38 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dis.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SJ209 P-Channel MOSFET NEC
2SJ200 P-Channel MOSFET Toshiba Semiconductor
2SJ201 P-Channel MOSFET Toshiba Semiconductor
2SJ202 P-Channel MOSFET NEC
2SJ203 MOS FIELD EFFECT TRANSISTOR NEC

Other Datasheets by Kexin Semiconductor

Part Number Description
2SJ203 P-Channel MOSFET
2SJ204 P-Channel MOSFET
2SJ205 P-Channel MOSFET
2SJ206 P-Channel MOSFET
2SJ207 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

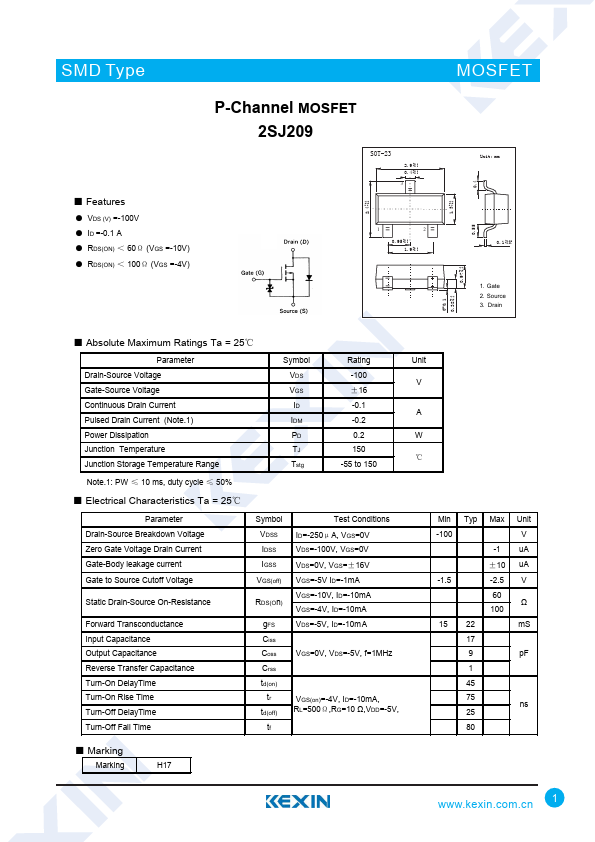

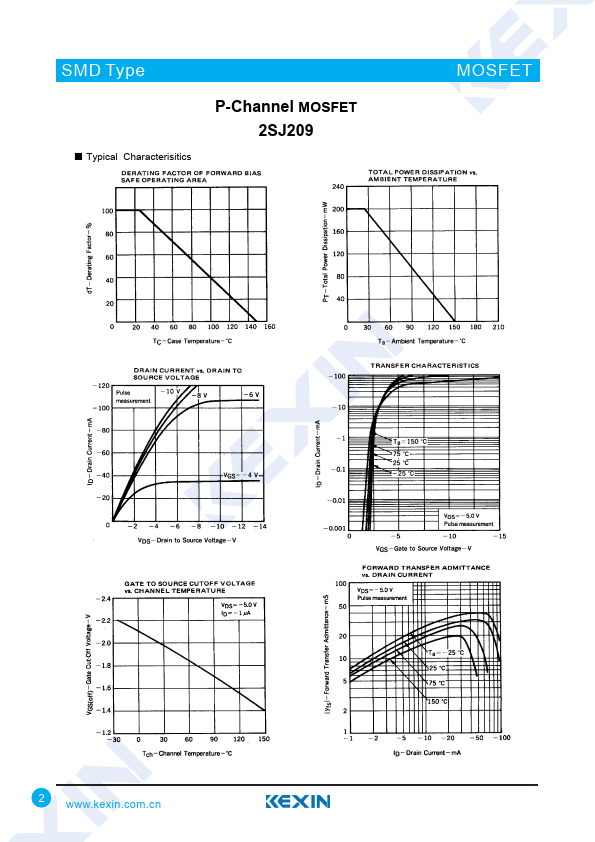

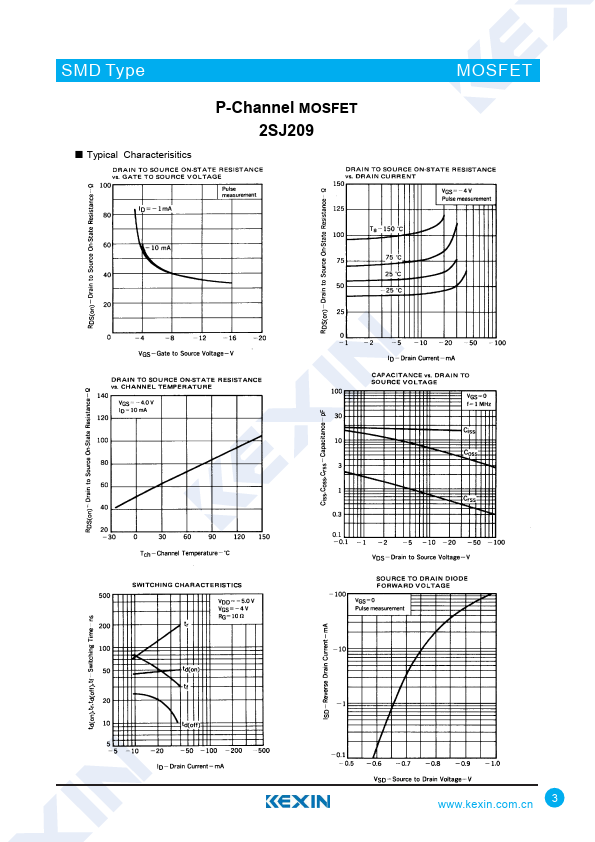

SMD Type ■ Features ● VDS (V) =-100V ● ID =-0.1 A ● RDS(ON) ＜ 60Ω (VGS =-10V) ● RDS(ON) ＜ 100Ω (VGS =-4V) P-Channel MOSFET 2SJ209 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 +0.1 2.4 -0.1 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.38 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dissipation Junction Temperature Junction Storage Temperature Range Symbol Rating Unit VDS -100 V VGS ±16 ID -0.1 A IDM -0.2 PD 0.2 W TJ 150 ℃ Tstg -55 to 150 Note.
