2SD814 Datasheet NPN Transistors

Manufacturer: Kexin Semiconductor

Datasheet Details

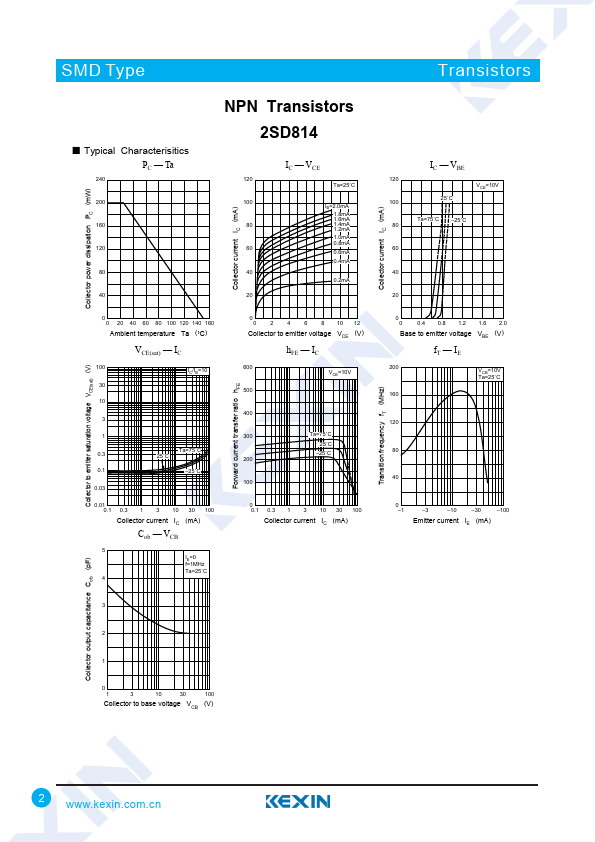

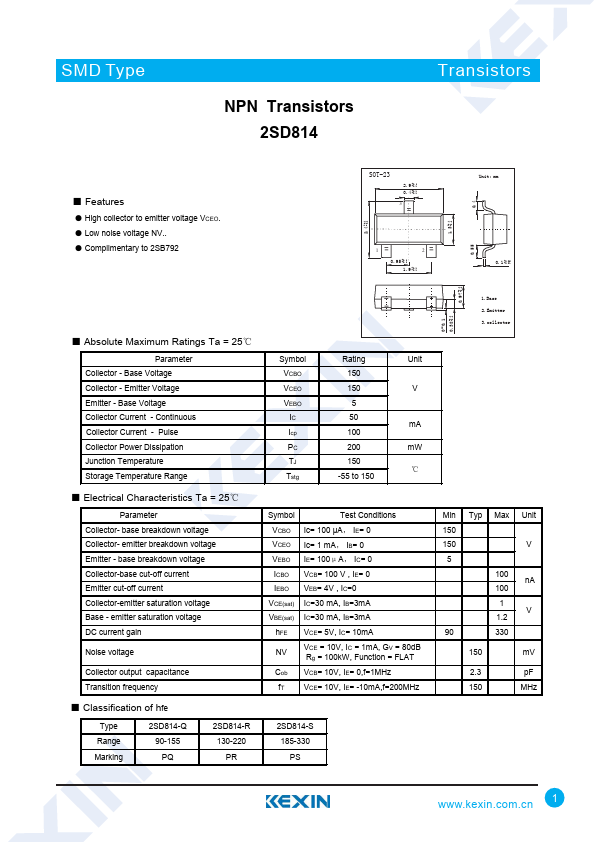

SMD Type NPN Transistors 2SD814 Transistors ■.

s.
High collector to emitter voltage VCEO.
Low noise voltage NV.
Complimentary to 2SB792 +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1.
Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Current - Pulse Collector Power Dissipation Junction Temperature S.
