2SD2230 Datasheet NPN Transistors

Manufacturer: Kexin Semiconductor

📥 Download Datasheet

Overview

SMD Type NPN Transistors 2SD2230 ■.

Key Features

  • s.
  • Collector Current Capability IC=500mA.

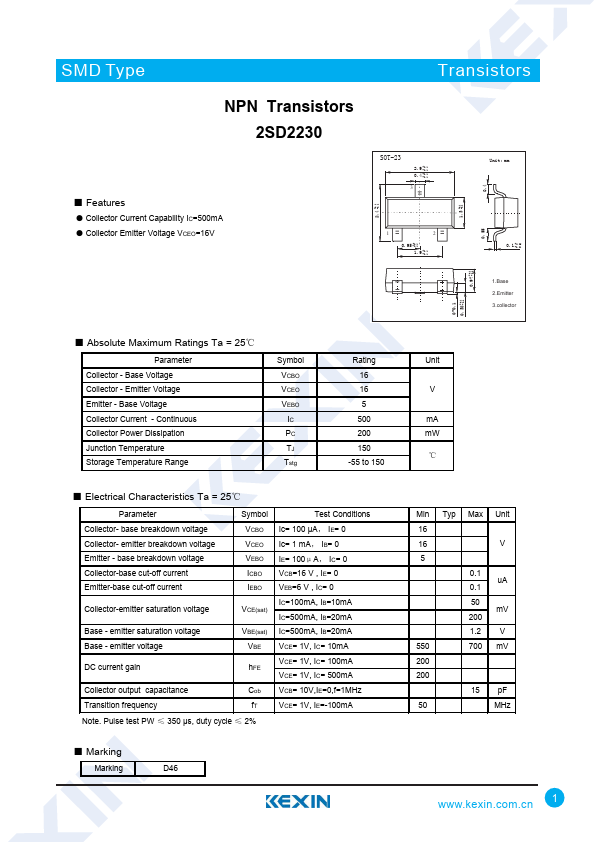

  • Collector Emitter Voltage VCEO=16V +0.1 2.4 -0.1 Transistors SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1.Base 2.Emitter 3.collector 0-0.1 +0.1 0.38 -0.1.

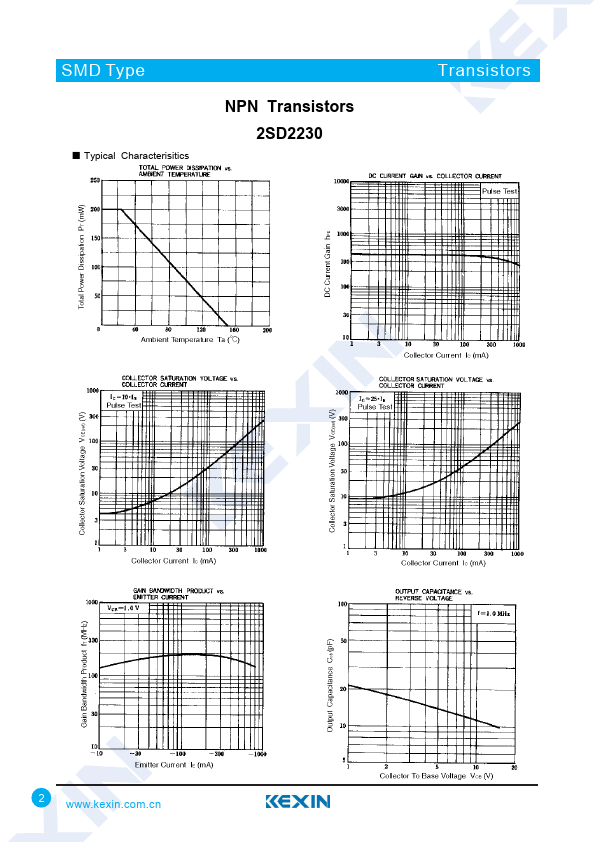

  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Junct.
