2SD1949 Datasheet Medium Power Transistor

Manufacturer: Kexin Semiconductor

📥 Download Datasheet

Overview

SMD Type Medium Power Transistor 2SD1949 TransistIoCrs.

Key Features

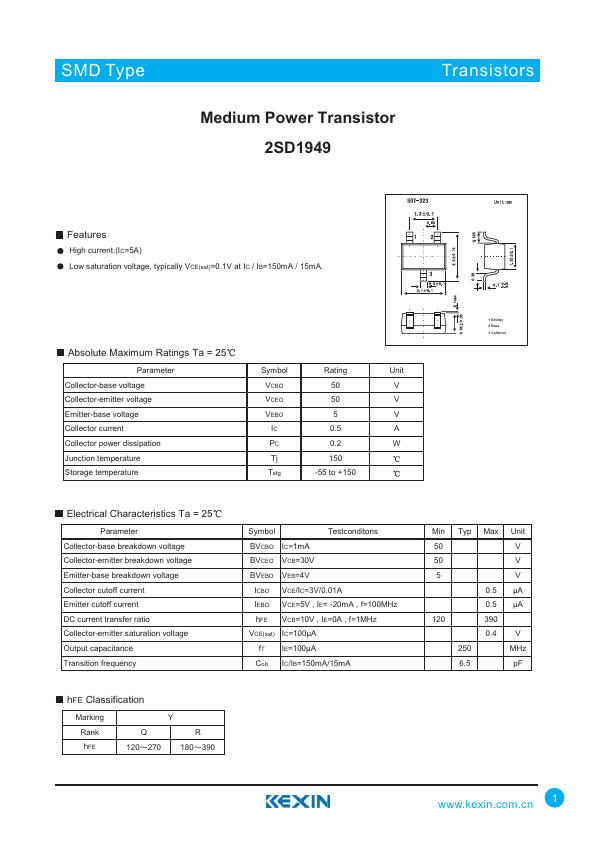

  • High current. (IC=5A) Low saturation voltage, typically VCE(sat)=0.1V at IC / IB=150mA / 15mA. Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol Rating Unit VCBO 50 V VCEO 50 V VEBO 5 V IC 0.5 A PC 0.2 W Tj 150 Tstg -55 to +150 1 Emitter 2 Base 3 Collector Electrical Characteristics Ta = 25 Parameter Collector-base b.
