2SD1899-Z Datasheet NPN Silicon Epitaxial Transistor

Manufacturer: Kexin Semiconductor

Datasheet Details

Part number	2SD1899-Z
Manufacturer	Kexin Semiconductor
File Size	39.55 KB
Description	NPN Silicon Epitaxial Transistor
Download	2SD1899-Z Download (PDF)

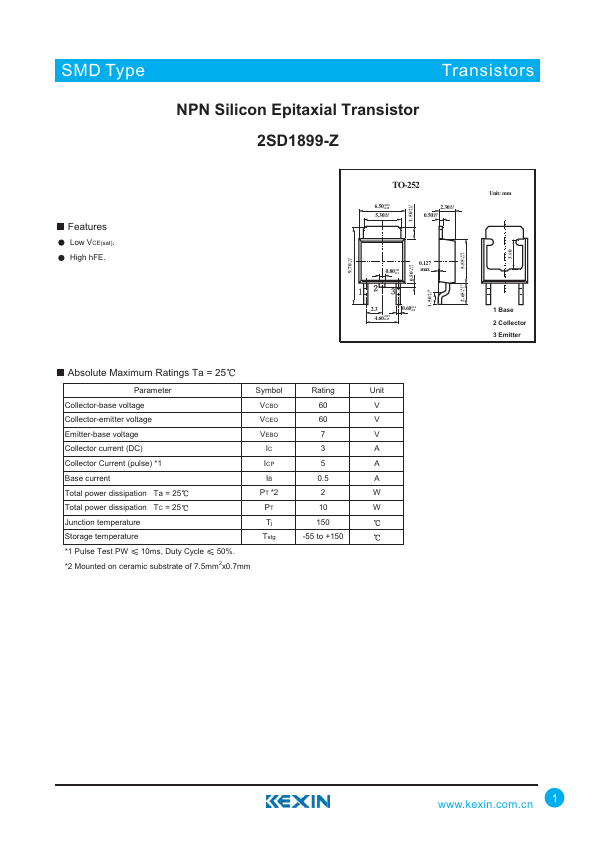

SMD Type Transistors NPN Silicon Epitaxial Transistor 2SD1899-Z.

Low VCE(sat). High hFE. + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 + 1.50 0.15 -0.15 + 0.15 0 .5 0 -0.15 + 0.28 1 .5 0 -0.1 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Collector-base voltage VCBO 60 V Collector-emitter voltage VCEO 60 V Emitter-base voltage VEBO 7 V Collector current (DC) IC 3 A Collector Current (pulse).
1 ICP 5 A Base current.
