2SD1766 - NPN Transistors

📥 Download Datasheet

Overview

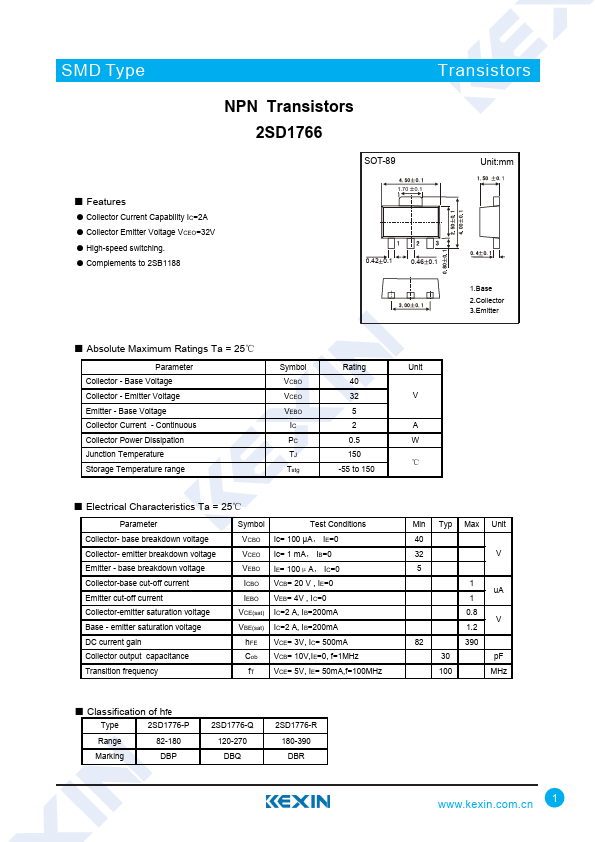

SMD Type Transistors NPN Transistors 2SD1766 SOT-89 ■.

Key Features

  • s.
  • Collector Current Capability IC=2A.
  • Collector Emitter Voltage VCEO=32V.
  • High-speed switching.
  • Complements to 2SB1188 1.70 0.1 0.42 0.1 0.46 0.1 Unit:mm 1.Base 2.Collector 3.Emitter.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Junction Temperature Storage Temperature range Symbol Rating Unit VCBO 40 VCEO 32 V VEBO 5 IC.
