2SB1561 - PNP Transistors

Key Features

  • s.
  • Collector Current Capability IC=-2A.
  • Collector Emitter Voltage VCEO=-60V.
  • Complements the 2SD2391 1.70 0.1 0.42 0.1 0.46 0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Current - Pulse Symbol VCBO VCEO VEBO IC ICP Collector Power Dissipation Junction Temperature Storage Temperature range PD (Note.1) TJ Tstg Note.1: When mounted on a 40X40X0.7mmceram.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB1561 Medium Power Transistor Rohm
2SB1561U PNP Silicon Diode SURGE
2SB156 PNP Transistor Hitachi
2SB1560 Silicon PNP Transistor Sanken electric
2SB1560 SILICON POWER TRANSISTOR SavantIC

Other Datasheets by Kexin Semiconductor

Part Number Description
2SB1527 PNP Epitaxial Planar Silicon Transistors
2SB1537 Silicon PNP epitaxial planar type Transistor
2SB1539 Silicon PNP epitaxial planar type Transistor
2SB1571 Silicon PNP Epitaxial Planar Transistor
2SB1572 Silicon PNP Epitaxial Planar Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

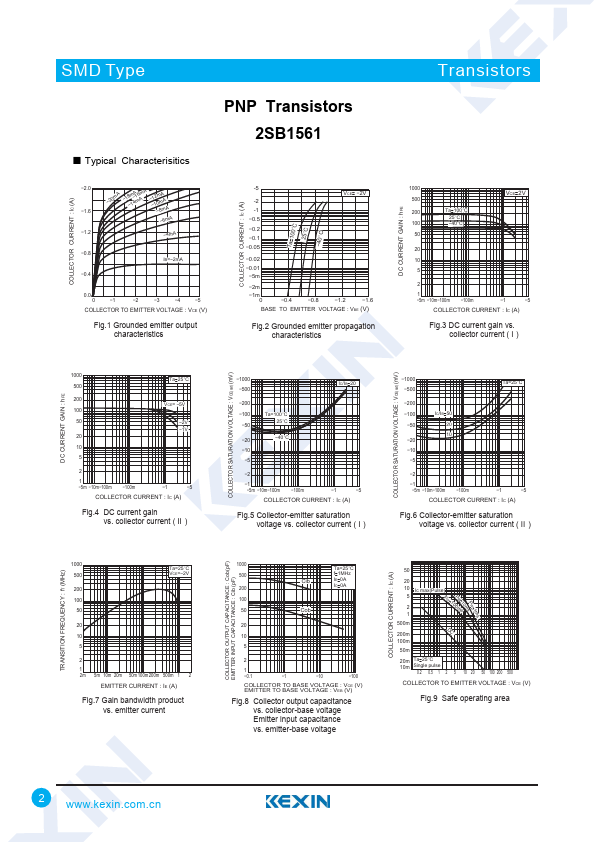

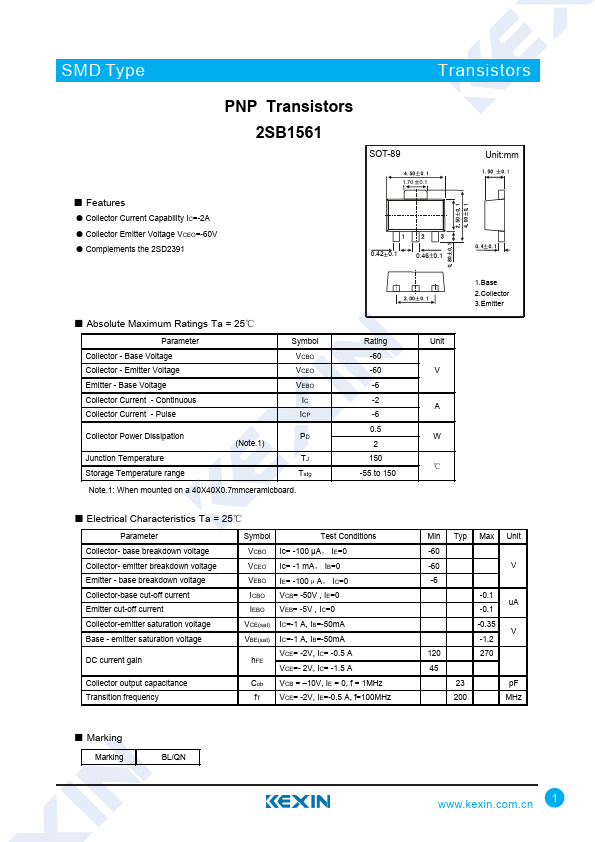

SMD Type Transistors PNP Transistors 2SB1561 SOT-89 Unit:mm ■ Features ● Collector Current Capability IC=-2A ● Collector Emitter Voltage VCEO=-60V ● Complements the 2SD2391 1.70 0.1 0.42 0.1 0.46 0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Current - Pulse Symbol VCBO VCEO VEBO IC ICP Collector Power Dissipation Junction Temperature Storage Temperature range PD (Note.1) TJ Tstg Note.1: When mounted on a 40X40X0.7mmceramicboard. Rating -60 -60 -6 -2 -6 0.5 2 150 -55 to 150 1.Base 2.Collector 3.
