2SB1443 - Power Transistor

Key Features

  • Low saturation voltage. VCE (sat) = -0.35V (Max. ) at IC / IB = -1A / -50mA. Excellent DC current gain characteristics. TransistIoCrs Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector dissipation Junction temperature Storage temperature Symbol Rating Unit VCBO -50 V VCEO -50 V VEBO -6 V IC -2 A ICP.
  • 1 -5 A PC.
  • 2 1 W Tj 150 Tstg -55 to +150.
  • 1 Single pulse Pw=10ms.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB1443 Power Transistor Rohm
2SB1440 Silicon PNP epitaxial planer type Transistor Panasonic Semiconductor
2SB1440 Silicon PNP epitaxial planer type Transistor GME
2SB1440 PNP Transistor WILLAS
2SB1440 Silicon PNP transistor BLUE ROCKET ELECTRONICS

Other Datasheets by Kexin Semiconductor

Part Number Description
2SB1440 Silicon PNP epitaxial planar type Transistor
2SB1407S Silicon PNP Epitaxial Transistor
2SB1409S Silicon NPN Triple Diffused Type Transistor
2SB1412 Low Frequency Transistor
2SB1424 PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

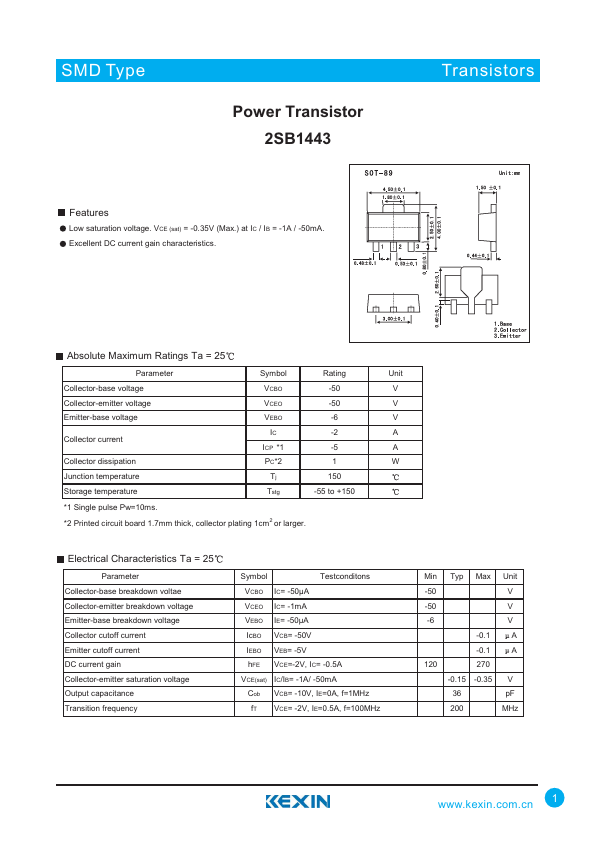

SMD Type Power Transistor 2SB1443 Features Low saturation voltage. VCE (sat) = -0.35V (Max.) at IC / IB = -1A / -50mA. Excellent DC current gain characteristics. TransistIoCrs Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector dissipation Junction temperature Storage temperature Symbol Rating Unit VCBO -50 V VCEO -50 V VEBO -6 V IC -2 A ICP *1 -5 A PC*2 1 W Tj 150 Tstg -55 to +150 *1 Single pulse Pw=10ms. *2 Printed circuit board 1.7mm thick, collector plating 1cm2 or larger.
