2SB1204 - PNP Transistors

Key Features

  • s.
  • Low collector-to-emitter saturation voltage.
  • High current and high fT.
  • Fast switching time.
  • Complementary to 2SD1804 + 0.2 9 .7 0 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30 +0.1 -0.1 0.50 +0.8 -0.7 + 0.15 1 .5 0 -0.15 0.80+0.1 -0.1 0.127 m ax +0 5.55 .15 -0.15 3.80 Unit: mm + 2.65 0.25 -0.1 + 0.50 0.15 -0.15 + 1.50 0.28 -0.1 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 1 Base 2 Collector 3 Emitter.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rat.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB1204 PNP Epitaxial Planar Silicon Transistor Sanyo Semicon Device
2SB1204 Silicon PNP transistor BLUE ROCKET ELECTRONICS
2SB1204 Silicon PNP Power Transistor Inchange Semiconductor
2SB1204 Bipolar Transistor ON Semiconductor
2SB1201 PNP/NPN Epitaxial Planar Silicon Transistors Sanyo Semicon Device

Other Datasheets by Kexin Semiconductor

Part Number Description
2SB1201 Transistors
2SB1202 PNP Transistors
2SB1203 PNP Transistors
2SB1205 PNP Transistors
2SB1215 PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

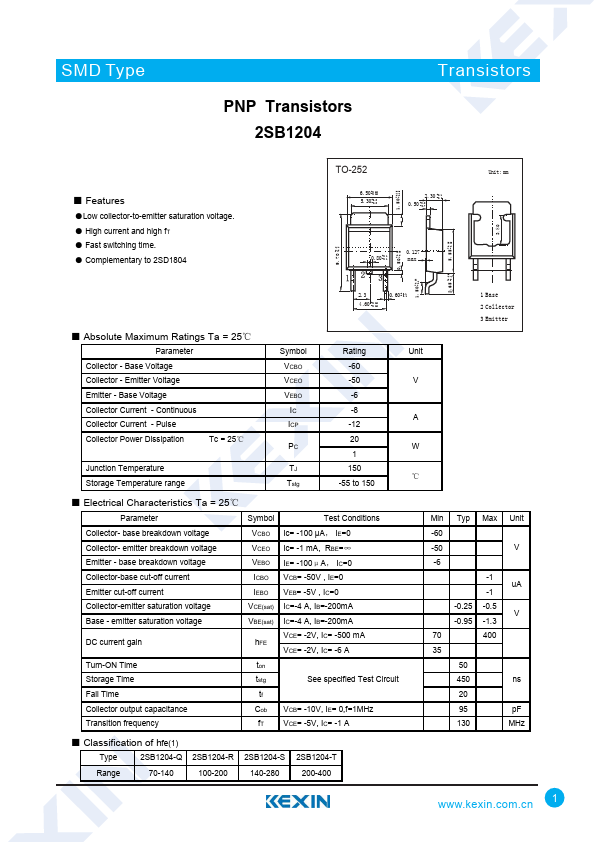

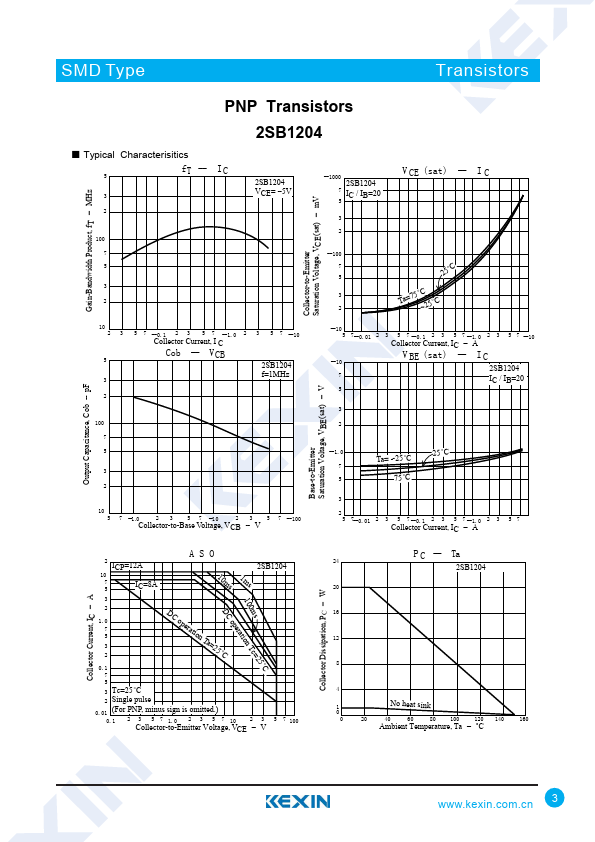

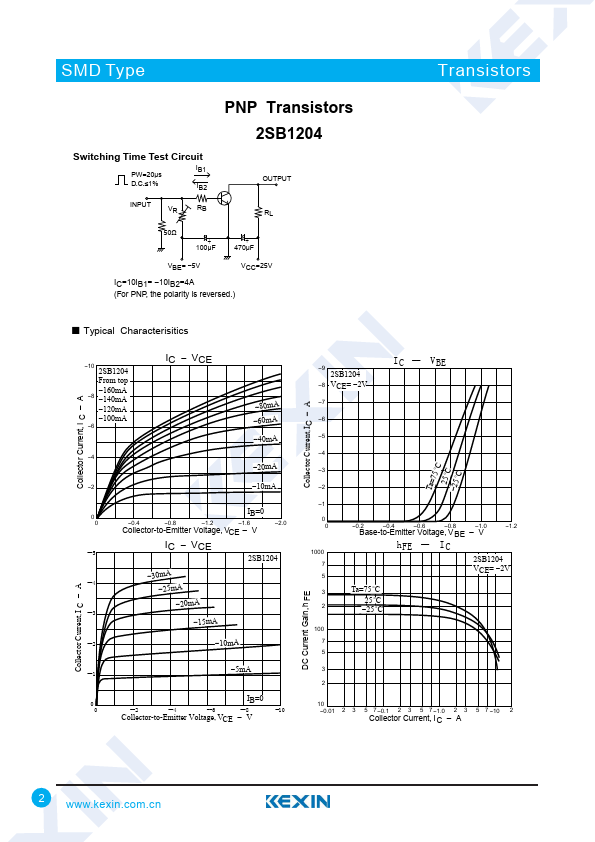

SMD Type PNP Transistors 2SB1204 Transistors ■ Features ●Low collector-to-emitter saturation voltage. ● High current and high fT ● Fast switching time. ● Complementary to 2SD1804 + 0.2 9 .7 0 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30 +0.1 -0.1 0.50 +0.8 -0.7 + 0.15 1 .5 0 -0.15 0.80+0.1 -0.1 0.127 m ax +0 5.55 .15 -0.15 3.80 Unit: mm + 2.65 0.25 -0.1 + 0.50 0.15 -0.15 + 1.50 0.28 -0.1 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.
