2SB1002 - PNP Transistors

Key Features

  • s.
  • Low frequency power amplifier.
  • Complementary to 2SD1368 1.70 0.1 0.42 0.1 0.46 0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector current -Pulse (Note.1) Collector Power Dissipation Junction Temperature Storage Temperature range Note.1: PW ≤ 10ms,Duty cycle≤ 20℅ Symbol VCBO VCEO VEBO IC ICP PC TJ Tstg Rating -70 -50 -6 -1 -1.5 1 150 -55 to 150.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB1002 Silicon PNP Transistor Hitachi Semiconductor
2SB1002 Silicon PNP Transistor Renesas
2SB1000 LOW FREQUENCY POWER AMPLIFIER Hitachi Semiconductor
2SB1000A LOW FREQUENCY POWER AMPLIFIER Hitachi Semiconductor
2SB1001 Silicon PNP Epitaxial Transistor Hitachi Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SB1000 PNP Transistors
2SB1001 Silicon PNP Transistor
2SB1025 PNP Transistors
2SB1026 PNP Transistors
2SB1027 PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

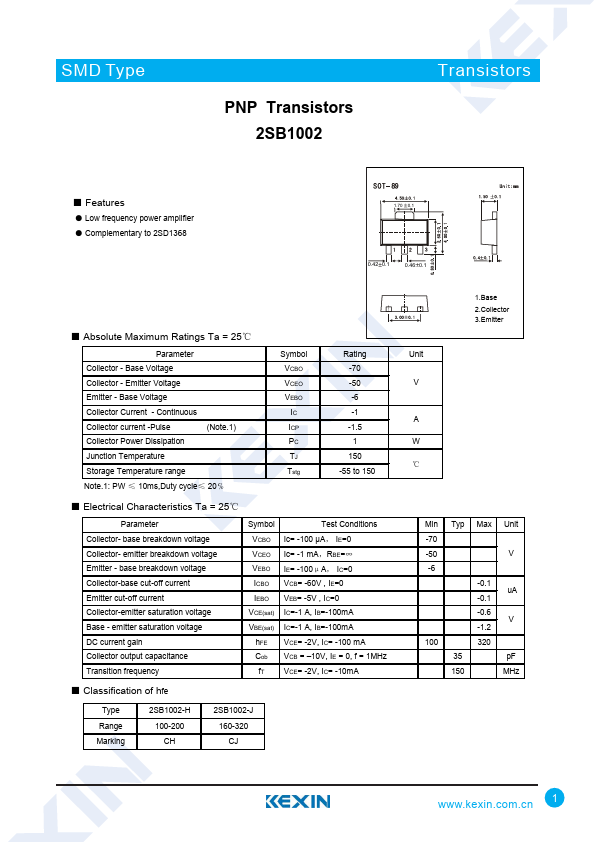

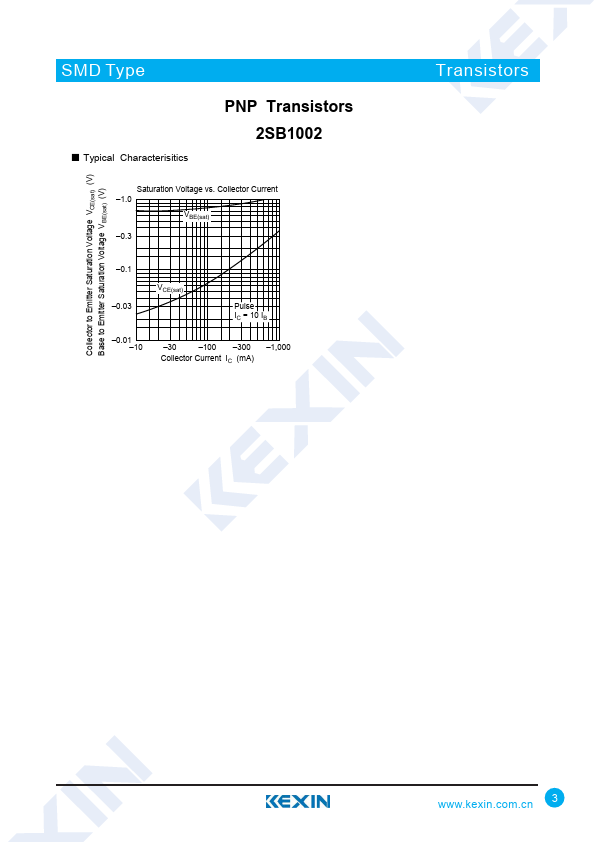

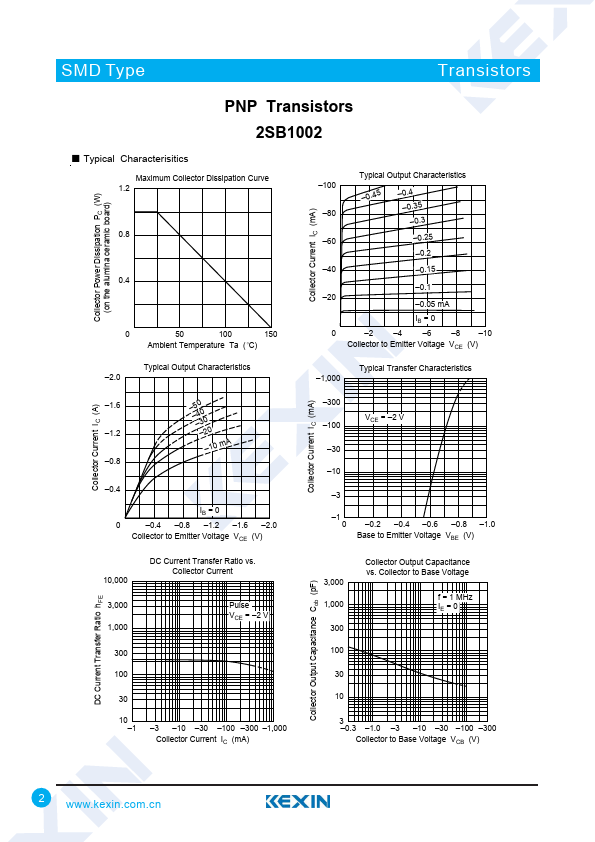

SMD Type PNP Transistors 2SB1002 Transistors ■ Features ● Low frequency power amplifier ● Complementary to 2SD1368 1.70 0.1 0.42 0.1 0.46 0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector current -Pulse (Note.1) Collector Power Dissipation Junction Temperature Storage Temperature range Note.1: PW ≤ 10ms,Duty cycle≤ 20℅ Symbol VCBO VCEO VEBO IC ICP PC TJ Tstg Rating -70 -50 -6 -1 -1.
