2SA2058 - PNP Transistors

Key Features

  • s.
  • High DC current gain: hFE = 200 to 500 (IC =.
  • 0.2 A).
  • Low collector-emitter saturation voltage: VCE (sat) =.
  • 0.19 V (max).
  • High-speed switching: tf = 25 ns (typ. ) +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Collector - Base Voltage VCBO -20 Collector - Emitter Voltage VCEO.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA2058 Silicon PNP Transistor Toshiba Semiconductor
2SA2050 PNP Transistor INCHANGE
2SA2050 SILICON PNP TRANSISTOR LZG
2SA2050 Silicon PNP transistor BLUE ROCKET ELECTRONICS
2SA2050 PNP Transistor JCET

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA2018 PNP Transistors
2SA2071-Q PNP Transistors
2SA1013 PNP Transistors
2SA1015 PNP Transistor
2SA1022 PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

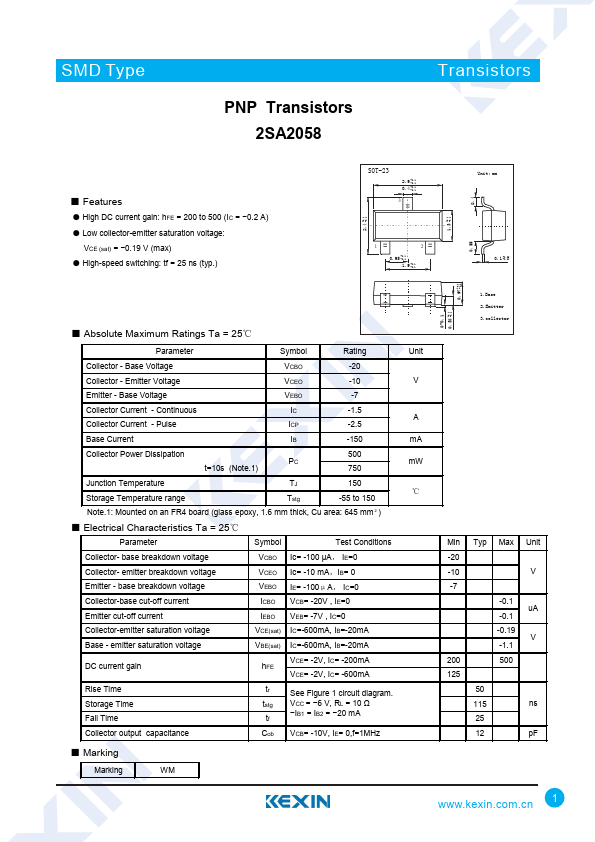

SMD Type PNP Transistors 2SA2058 Transistors ■ Features ● High DC current gain: hFE = 200 to 500 (IC = −0.2 A) ● Low collector-emitter saturation voltage: VCE (sat) = −0.19 V (max) ● High-speed switching: tf = 25 ns (typ.) +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Collector - Base Voltage VCBO -20 Collector - Emitter Voltage VCEO -10 V Emitter - Base Voltage VEBO -7 Collector Current - Continuous Collector Current - Pulse IC -1.5 A ICP -2.5 Base Current IB -150 mA Collector Power Dissipation PC t=10s (Note.
