2SA1815 - PNP Transistors

Key Features

  • s.
  • High power gain : PG=25dB (f=100MHz).
  • High cutoff frequency ; fT=750MHz typ.
  • Low collector-to-emitter saturation voltage.
  • Complementary pair with the 2SC4432. +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuou.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1815 PNP Epitaxial Planar Silicon Transistor Sanyo Semicon Device
2SA1810 Silicon PNP Epitaxial Transistor Hitachi Semiconductor
2SA1811 TRANSISTOR Toshiba Semiconductor
2SA1812 High-voltage Switching Transistor Rohm
2SA1813 PNP Epitaxial Planar Silicon Transistor Sanyo Semicon Device

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA1813 PNP Transistors
2SA1832 Silicon PNP Transistor
2SA1839 PNP Transistors
2SA1875 PNP Transistors
2SA1890 PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

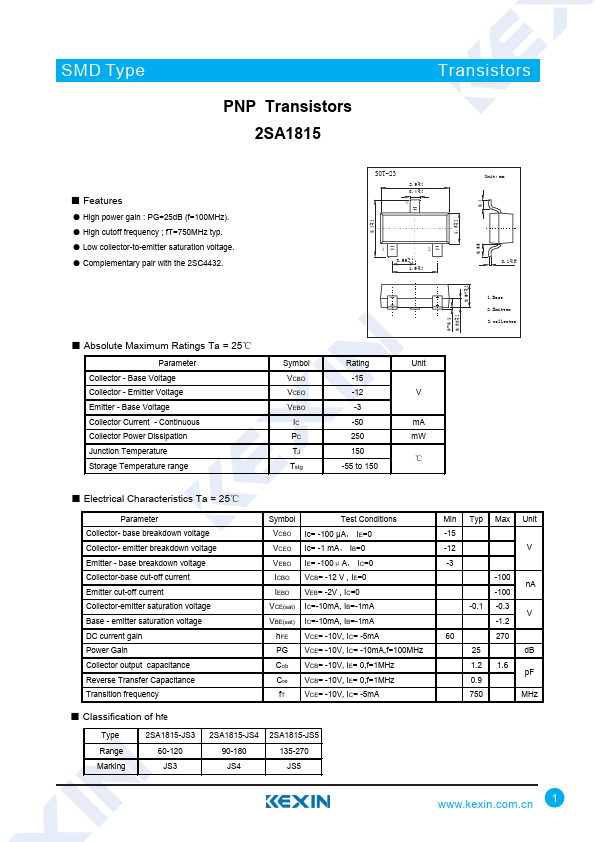

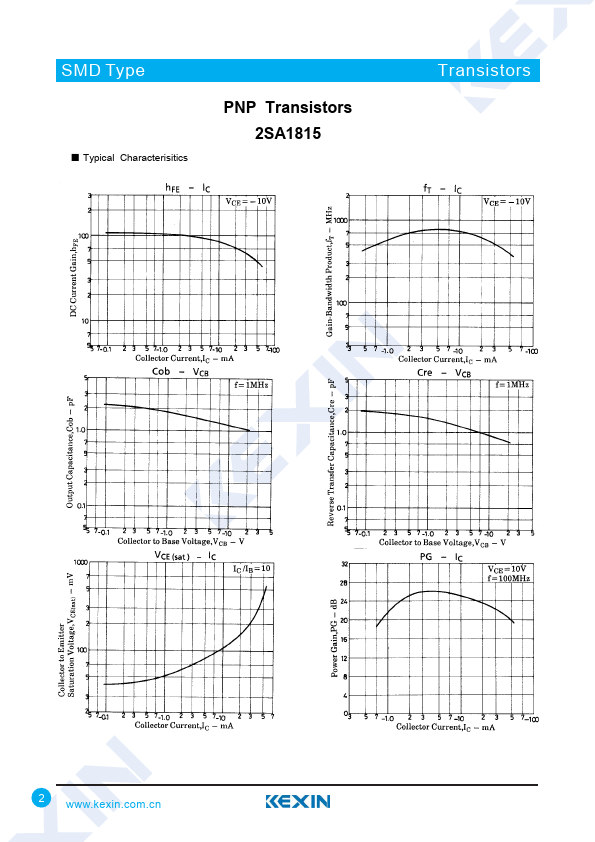

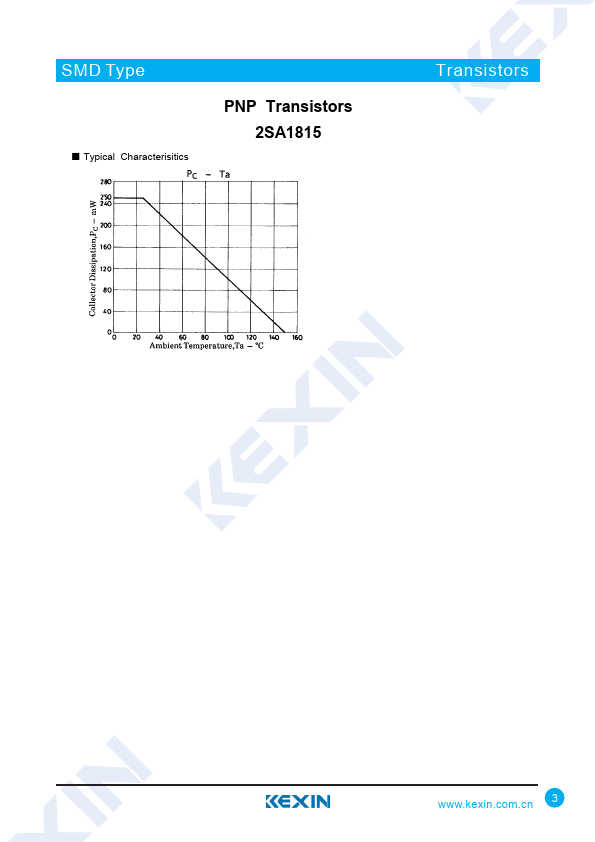

SMD Type PNP Transistors 2SA1815 Transistors ■ Features ● High power gain : PG=25dB (f=100MHz). ● High cutoff frequency ; fT=750MHz typ. ● Low collector-to-emitter saturation voltage. ● Complementary pair with the 2SC4432. +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Junction Temperature Storage Temperature range Symbol Rating Unit VCBO -15 VCEO -12 V VEBO -3 IC -50 mA PC 250 mW TJ 150 ℃ Tstg -55 to 150 0-0.1 +0.1 0.38 -0.1 1.Base 2.Emitter 3.
