2SA1766 - PNP Transistors

Key Features

  • s.
  • Adoption of FBET, MBIT processes.
  • High DC current gain (hFE=500 to 1200).
  • Large current capacity.
  • Low collector-to-emitter saturation voltage.
  • High VEBO. 1.70 0.1 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Collector - Base Voltage VCBO Collector - Emitter Voltage VCEO Emitter - Base Voltage VEBO Collector Current - Continuous IC Collector Current - Pulse ICP Base Current IB Collector.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1766 PNP Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SA1761 TRANSISTOR Toshiba Semiconductor
2SA1762 Silicon PNP epitaxial planer type Transistor Panasonic Semiconductor
2SA1763 PNP Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SA1764 PNP Epitaxial Planar Silicon Transistors Sanyo Semicon Device

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA1729 PNP Transistors
2SA1730 PNP Transistors
2SA1734 PNP Transistors
2SA1735 PNP Transistors
2SA1736 PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

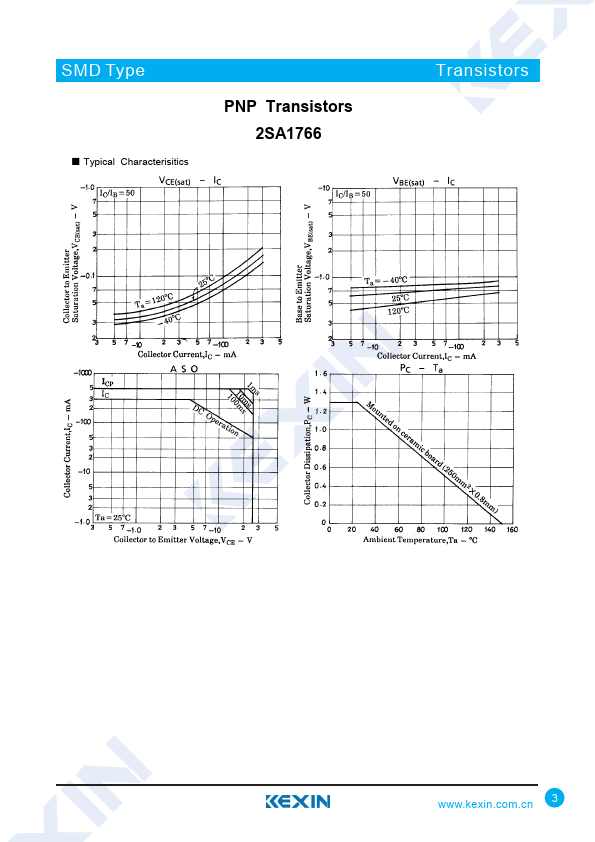

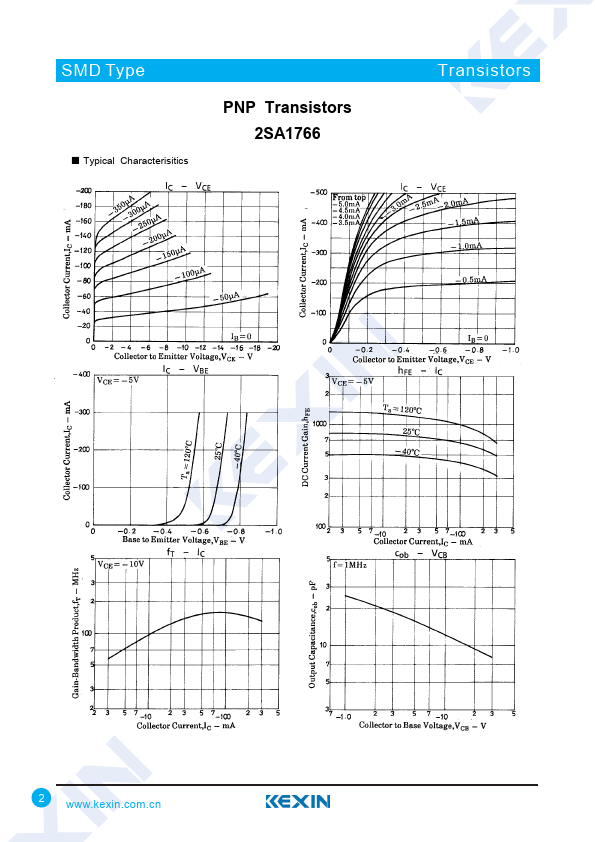

SMD Type PNP Transistors 2SA1766 Transistors ■ Features ● Adoption of FBET, MBIT processes. ● High DC current gain (hFE=500 to 1200). ● Large current capacity. ● Low collector-to-emitter saturation voltage. ● High VEBO. 1.70 0.1 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Collector - Base Voltage VCBO Collector - Emitter Voltage VCEO Emitter - Base Voltage VEBO Collector Current - Continuous IC Collector Current - Pulse ICP Base Current IB Collector Power Dissipation (Note.1) PC Junction Temperature TJ Storage Temperature range Tstg Note.1: Mounted on ceramic board (250mm 2 X 0.8mm) Rating -30 -25 -15 -300 -500 -60 1.
