2SA1748 - PNP Transistors

Key Features

  • s.
  • High transition frequency fT.
  • Small collector output capacitance Cob.
  • Complementary to 2SC4562. 1.Base 2.Emitter 3.Collector.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Collector - Base Voltage Collector - Emitter Voltage VCBO -50 VCEO -50 V Emitter - Base Voltage VEBO -5 Collector Current - Continuous IC -50 mA Collector Power Dissipation PC 150 mW Junction Temperature Storage Temperature range TJ 150 ℃ Tstg -55 to 150.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1748 Silicon PNP epitaxial planer type Transistor Panasonic Semiconductor
2SA1740 PNP Epitaxial Planar Silicon Transistor Sanyo Semicon Device
2SA1740 PNP Epitaxial Planar Silicon Transistor GME
2SA1740 PNP SILICON TRANSISTOR UTC
2SA1740 Plastic-Encapsulated Transistors TRANSYS

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA1740 Transistors
2SA1745 PNP Epitaxial Planar Silicon Transistors
2SA1729 PNP Transistors
2SA1730 PNP Transistors
2SA1734 PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

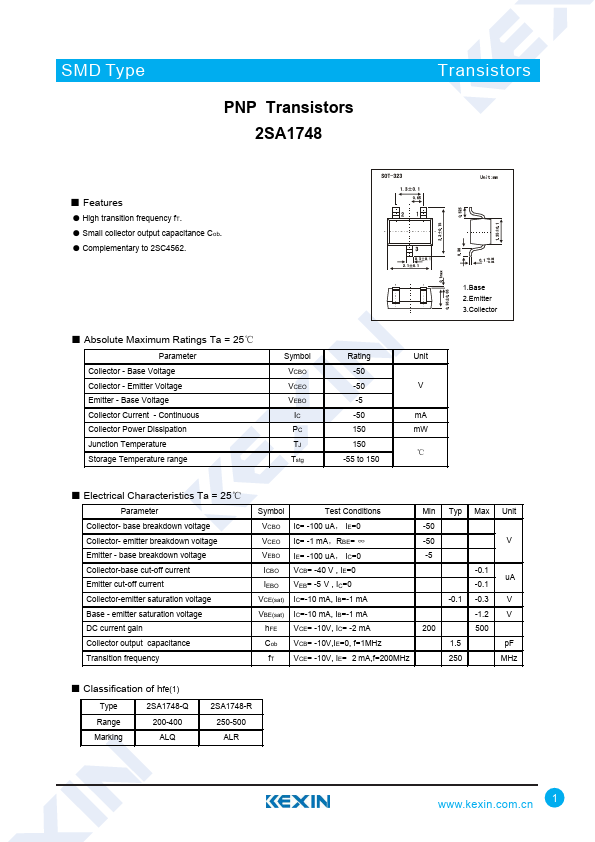

SMD Type PNP Transistors 2SA1748 Transistors ■ Features ● High transition frequency fT. ● Small collector output capacitance Cob. ● Complementary to 2SC4562. 1.Base 2.Emitter 3.
