2SA1226 - PNP Transistors

Key Features

  • s.
  • Collector Current Capability IC=-30mA.
  • Collector Emitter Voltage VCEO=-40V +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Junction Temperature Storage Temperature range Symbol Rating Uni.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1226 PNP SILICON EPITAXIAL TRANSISTOR NEC
2SA1220 SILICON POWER TRANSISTOR SavantIC
2SA1220 PNP Transistor INCHANGE
2SA1220A SILICON POWER TRANSISTOR SavantIC
2SA1220A PNP Transistor INCHANGE

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA1200 PNP Transistors
2SA1201 Transistors
2SA1202 Transistors
2SA1203 PNP Transistors
2SA1204 PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

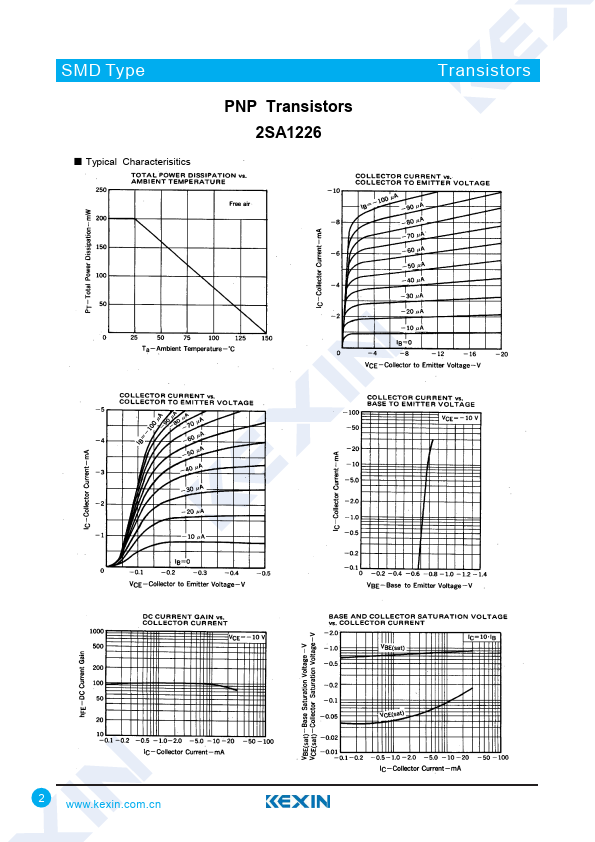

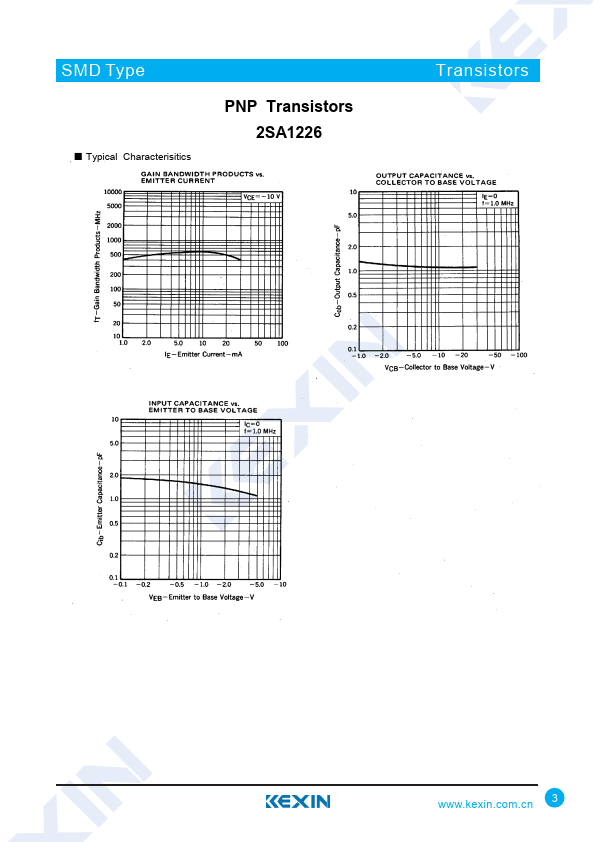

SMD Type Transistors PNP Transistors 2SA1226 ■ Features ● Collector Current Capability IC=-30mA ● Collector Emitter Voltage VCEO=-40V +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Junction Temperature Storage Temperature range Symbol Rating Unit VCBO -40 VCEO -40 V VEBO -5 IC -30 mA PC 200 mW TJ 150 ℃ Tstg -55 to 150 0-0.1 +0.1 0.38 -0.1 1.Base 2.Emitter 3.
