2SA1179 - PNP Transistors

Key Features

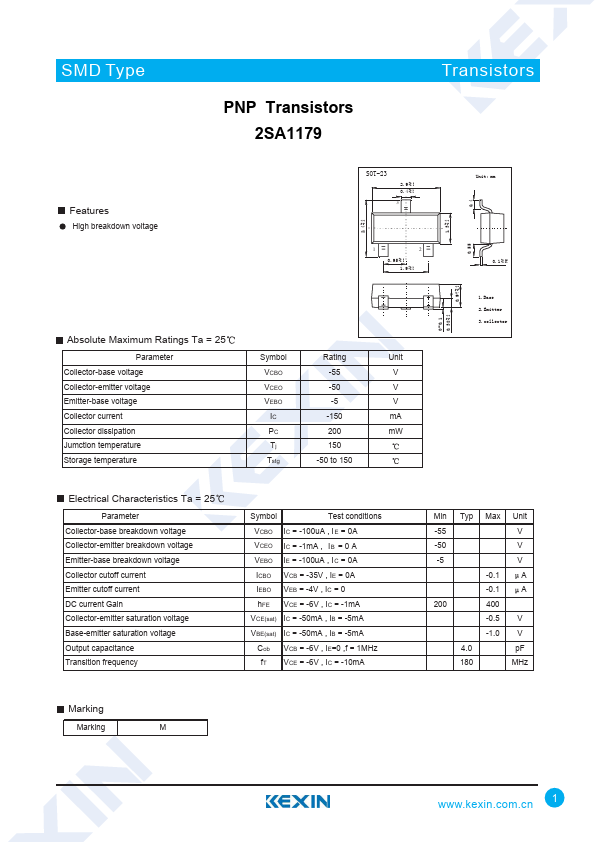

  • High breakdown voltage +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector dissipation Jumction temperature Storage temperature Symbol Rating Unit VCBO -55 V VCEO -50 V VEBO -5 V IC -150 mA PC 200 mW Tj 150 Tstg -50 to 150 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm.
