JW1550 - Active Clamp Flyback Controller

Datasheet Summary

Description

JW®1550 is an active clamp flyback controller for offline flyback converter applications.

The JW1550 can be adopted to reduce switching loss and provide high efficiency in whole load range.

JW1550 provide two control outputs, the main power switch control and the active clamp switch control.

Features

  • Boundary Mode Operation at Heavy Load.
  • DCM Operation at Light Load.
  • Burst Mode Control.
  • Built-in Soft-start Function.
  • X-cap Discharge Function.
  • Include a Boost Converter, Allow Vin Range 2.5-38V.
  • Maximum Frequency Setting with a Single External Resistor.
  • Adjustable Line Compensation.
  • High Switching Frequency up to 1.5MHz.
  • Reliable Fault Protections: VIN OVP/UVP, VS OVP/UVP, SCP, Brown-In/Out, OTP, CS Open and Short Protection.
  • QFN4X4-20 Pac.

📥 Download Datasheet

Datasheet preview – JW1550

Datasheet Details

Part number JW1550
Manufacturer JoulWatt
File Size 829.83 KB
Description Active Clamp Flyback Controller
Datasheet download datasheet JW1550 Datasheet

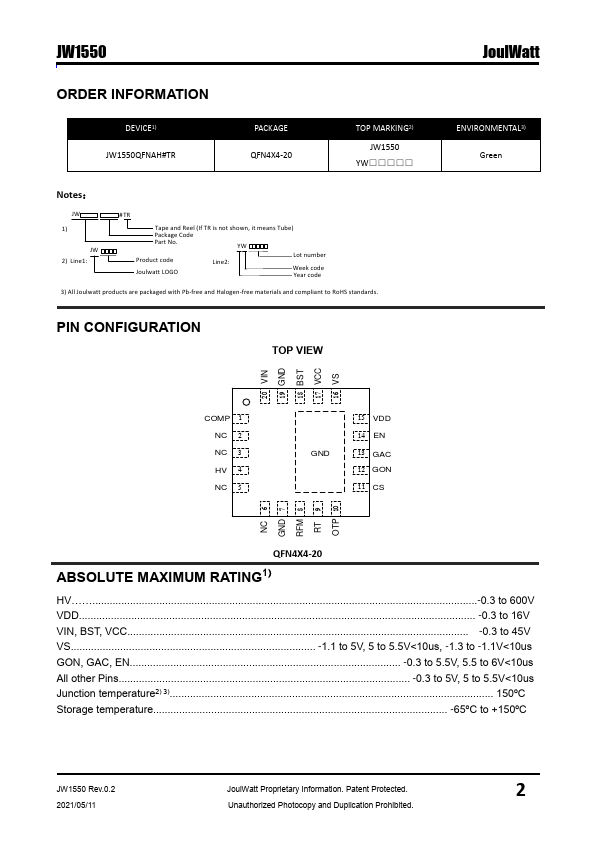

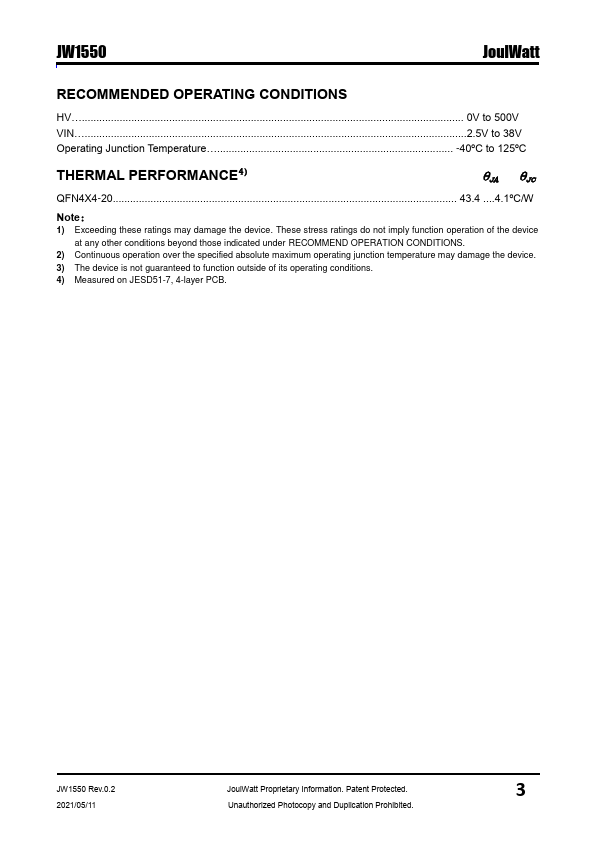

Additional preview pages of the JW1550 datasheet.

📁 Similar Datasheet

  • JW1236B - Full color LED control chip (ETC)
  • JW1758A - Offline Step-down LED Controller (SPMICRO)
  • JW1758B - Offline Step-down LED Controller (SPMICRO)
  • JW1758C - Offline Step-down LED Controller (SPMICRO)
  • JW1760 - Non-Isolated Buck LED Driver Controller (SPMICRO)
  • JW1763B - Non-isolated buck LED driver controller (SPMICRO)
  • JW1763C - Non-isolated buck LED driver controller (SPMICRO)
  • JW1769A - Offline Step-down LED Regulator (SPMICRO)
  • JW1769B - Offline Step-down LED Regulator (SPMICRO)
  • JW1769C - Offline Step-down LED Regulator (SPMICRO)
Other Datasheets by JoulWatt
  • JW1551 - Active Clamp Flyback Controller
  • JW1556 - Asymmetrical Half-Bridge Flyback Controller
  • JW1501A - Multi-Mode Primary-Side Regulation
  • JW1501B - Multi-Mode Primary-Side Regulation
  • JW15158AS - Offline QR GaN Flyback Converter
  • JW15158B - Offline QR Gan Flyback Converter
  • JW15158D - Offline QR GaN Flyback Converter
  • JW15158K - Offline QR GaN Flyback Converter

Full PDF Text Transcription

Click to expand full text

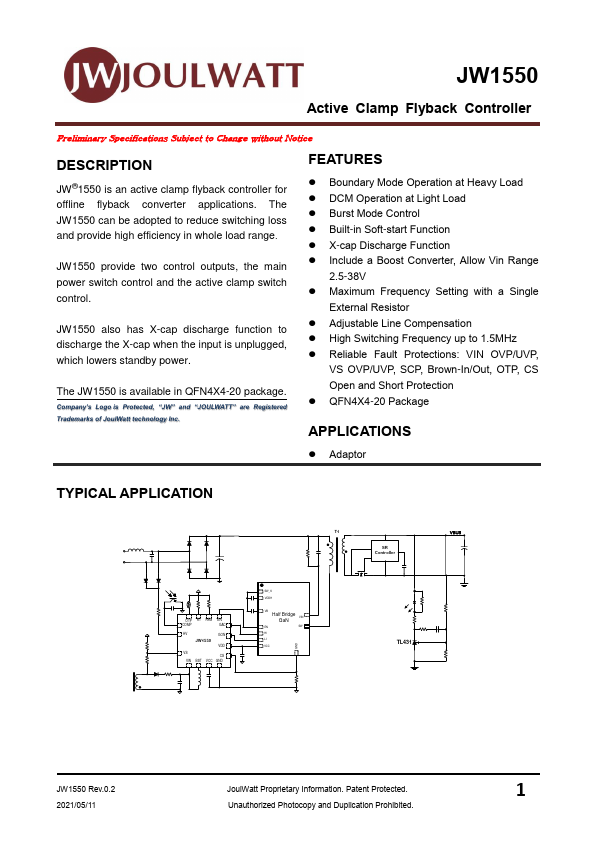

JW1550 Active Clamp Flyback Controller Preliminary Specifications Subject to Change without Notice DESCRIPTION JW®1550 is an active clamp flyback controller for offline flyback converter applications. The JW1550 can be adopted to reduce switching loss and provide high efficiency in whole load range. JW1550 provide two control outputs, the main power switch control and the active clamp switch control. JW1550 also has X-cap discharge function to discharge the X-cap when the input is unplugged, which lowers standby power. The JW1550 is available in QFN4X4-20 package. Company’s Logo is Protected, “JW” and “JOULWATT” are Registered Trademarks of JoulWatt technology Inc.
