VLA598-01R - DRIVER FOR IGBT MODULES

Key Features

  • >Directly mountable on the IGBT module >Built in the isolated DC-DC converter for gate drive >Output peak current is +/-10A(max) >Electrical isolation voltage is 4000Vrms (for 1 minute) >Built in short circuit protection with soft shut down >One way power supply system for gate drivers and input signal (VD=15V).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
VLA500-01 Hybrid IC IGBT Gate Driver + DC/DC Converter POWEREX
VLA500-01 HYBRID IC DRIVER Isahaya Electronics Corporation
VLA500K-01R HYBRID IC DRIVER Isahaya Electronics Corporation
VLA503 Hybrid IC IGBT Gate Driver Powerex Power Semiconductors
VLA513 Hybrid IC IGBT Gate Driver Powerex Power Semiconductors

Other Datasheets by Isahaya Electronics Corporation

Part Number Description
VLA591-01R DRIVER FOR IGBT MODULES
VLA500-02R DRIVER FOR IGBT MODULES
VLA502-01 DRIVER FOR IGBT MODULES
VLA503-01R DRIVER
VLA504-01R DRIVER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

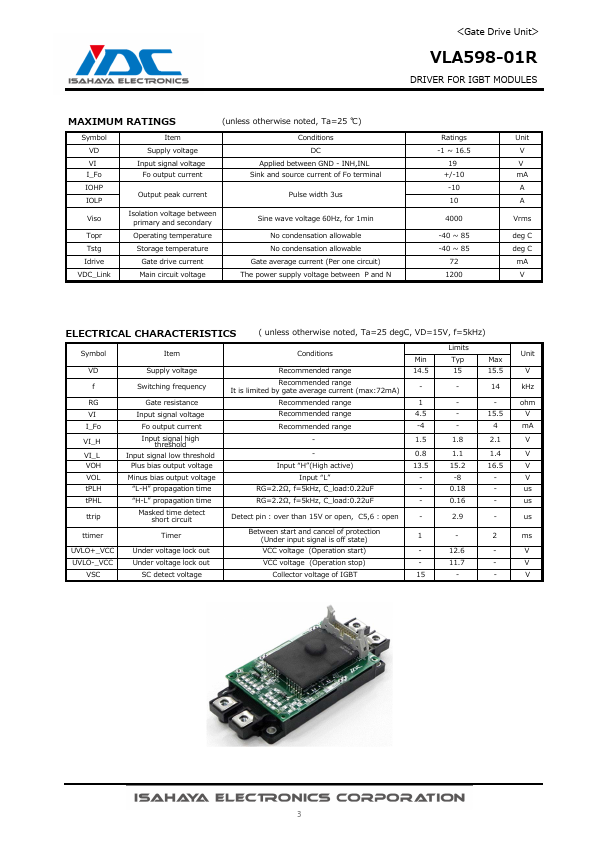

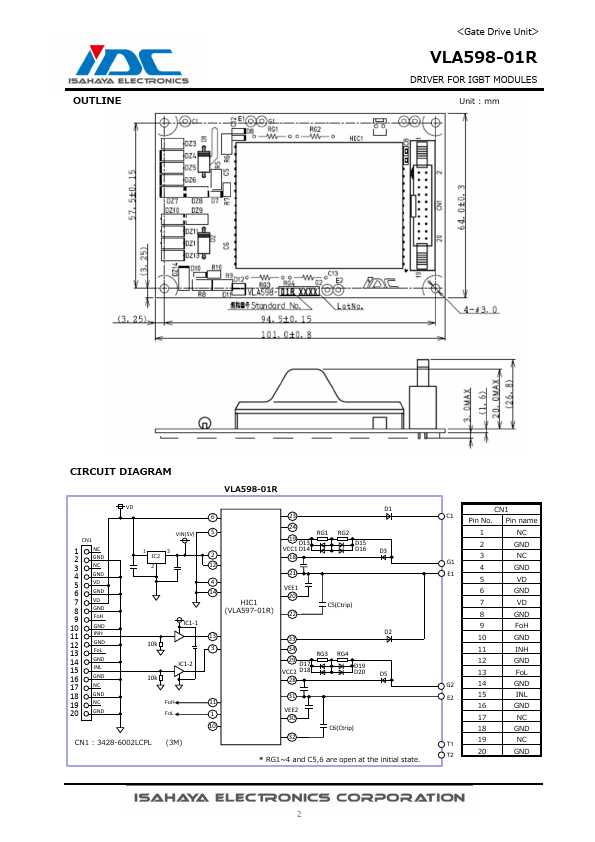

VLA598-01R Built in core HIC(VLA597-01R) ＜Gate Drive Unit＞ VLA598-01R DRIVER FOR IGBT MODULES FEATURES >Directly mountable on the IGBT module >Built in the isolated DC-DC converter for gate drive >Output peak current is +/-10A(max) >Electrical isolation voltage is 4000Vrms (for 1 minute) >Built in short circuit protection with soft shut down >One way power supply system for gate drivers and input signal (VD=15V) TARGETED IGBT MODULES VCES = 1200V series up to 800A class VCES = 1700V series up to 600A class APPLICATIONS Inverter, Servo, UPS, or Wind power etc. BLOCK DIAGRAM FoH INH VD Reg.
