RT3CLLM - Compound Transistor

Description

RT3CLLM is a compound transistor built with two 2SC3052 chips in SC-88 package.

Silicon npn epitaxial type Each transistor elements are independent.

📥 Download Datasheet

Datasheet Details

Part number RT3CLLM
Manufacturer Isahaya Electronics
File Size 156.54 KB
Description Compound Transistor
Datasheet download datasheet RT3CLLM Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RT3C66M Silicon NPN Dual Transistor Isahaya Electronics Corporation
RT3C77M Silicon NPN Transistor Isahaya Electronics Corporation
RT3C99M Silicon NPN Transistor Isahaya Electronics Corporation
RT3000A 3-Axis Digital Accelerometer Richtek
RT3000B 3-Axis Digital Accelerometer Richtek

Other Datasheets by Isahaya Electronics

Part Number Description
RT3DAAM SMALL-SIGNAL DIODE
RT3DKAM SMALL-SIGNAL DIODE
RT3DKKM SMALL-SIGNAL DIODE
RT3DSSM SMALL-SIGNAL DIODE
RT3JGGM Silicon P-Channel MOSFET

Full PDF Text Transcription

Click to expand full text

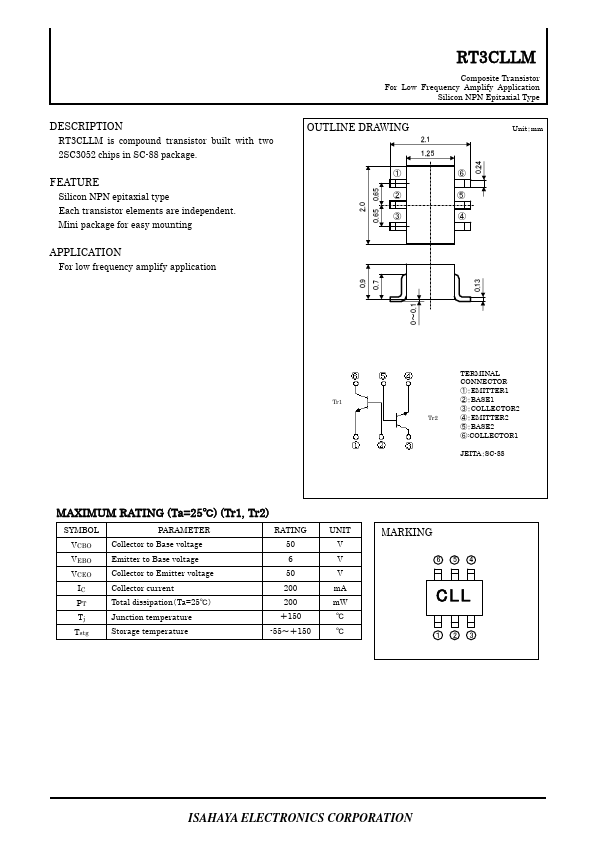

www.DataSheet4U.com PRELIMINARY RT3CLLM Compound Transistor For Low Frequency Amplify Application Silicon Npn Epitaxial Type DESCRIPTION RT3CLLM is a compound transistor built with two 2SC3052 chips in SC-88 package. OUTLINE DRAWING 2.1 1.25 ① 0.65 ② ③ ⑥ ⑤ ④ 0.2 Unit：mm FEATURE Silicon npn epitaxial type Each transistor elements are independent. Mini package for easy mounting 2.0 APPLICATION For low frequency amplify application 0.65 0.65 0～0.
