Datasheet Details
| Part number | RT1P44QU |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 455.33 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P44QU Download (PDF) |
|
|
Download the RT1P44QU datasheet PDF. This datasheet also includes the RT1P44QC variant, as both parts are published together in a single manufacturer document.
| Part number | RT1P44QU |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 455.33 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P44QU Download (PDF) |
|
|
|

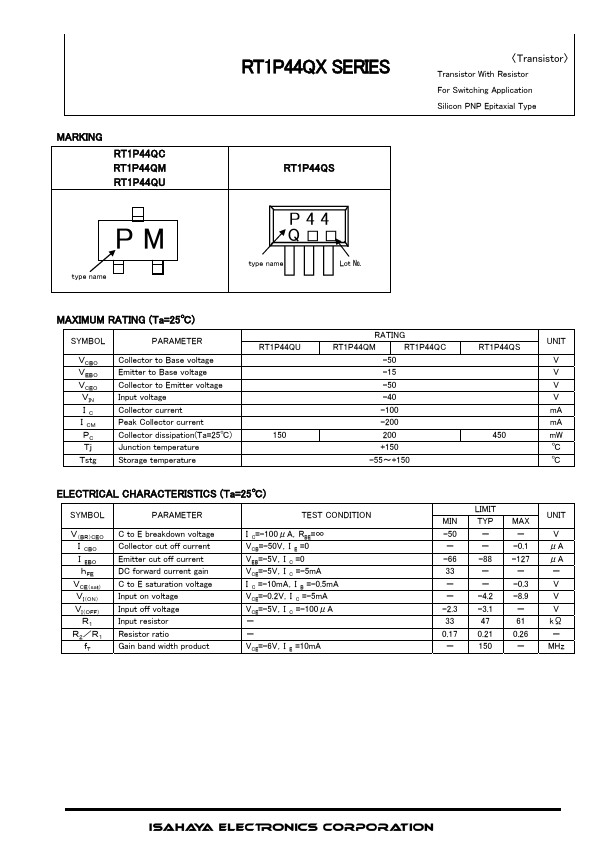

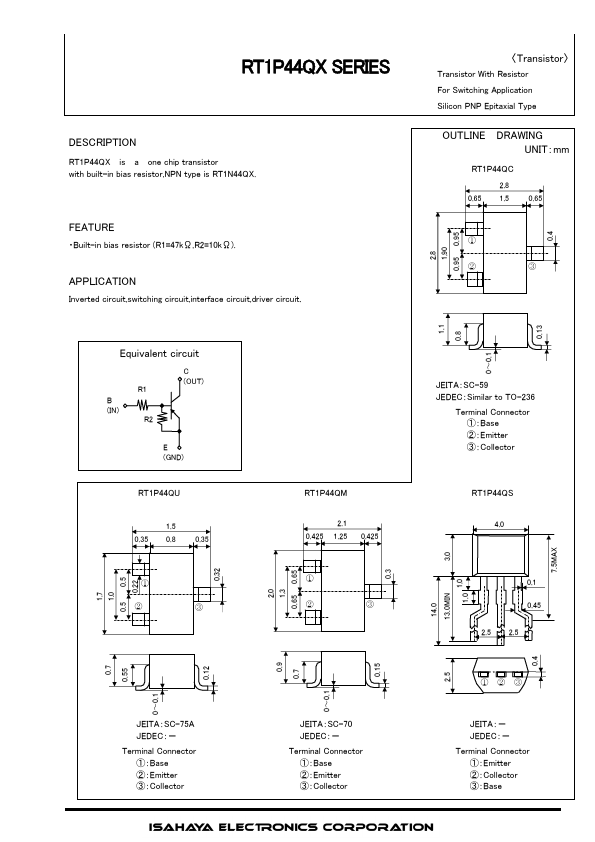

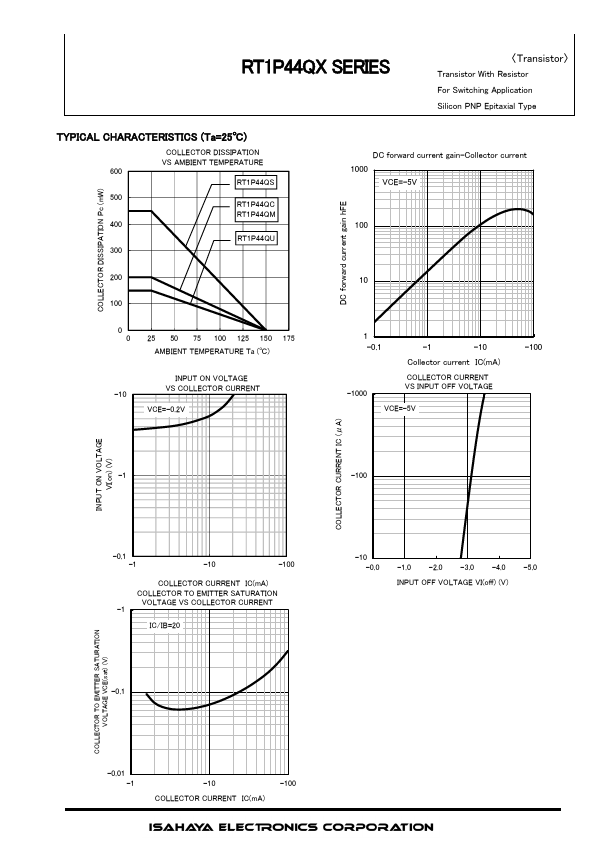

RT1P44QX is a one chip transistor with built-in bias resistor,NPN type is RT1N44QX.
RT1P44QX SERIES.
| Part Number | Description |
|---|---|
| RT1P44QC | Silicon PNP Epitaxial Type Transistor |
| RT1P44QM | Silicon PNP Epitaxial Type Transistor |
| RT1P44QS | Silicon PNP Epitaxial Type Transistor |
| RT1P440C | Silicon PNP Epitaxial Type Transistor |
| RT1P440M | Silicon PNP Epitaxial Type Transistor |
| RT1P440S | Silicon PNP Epitaxial Type Transistor |
| RT1P440U | Silicon PNP Epitaxial Type Transistor |
| RT1P441M | Silicon PNP Epitaxial Type Transistor |
| RT1P441S | Silicon PNP Epitaxial Type Transistor |
| RT1P441U | Silicon PNP Epitaxial Type Transistor |
