Datasheet Details
| Part number | RT1P24BS |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 484.33 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P24BS Download (PDF) |
|
|
Download the RT1P24BS datasheet PDF. This datasheet also includes the RT1P24BC variant, as both parts are published together in a single manufacturer document.
| Part number | RT1P24BS |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 484.33 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P24BS Download (PDF) |
|
|
|

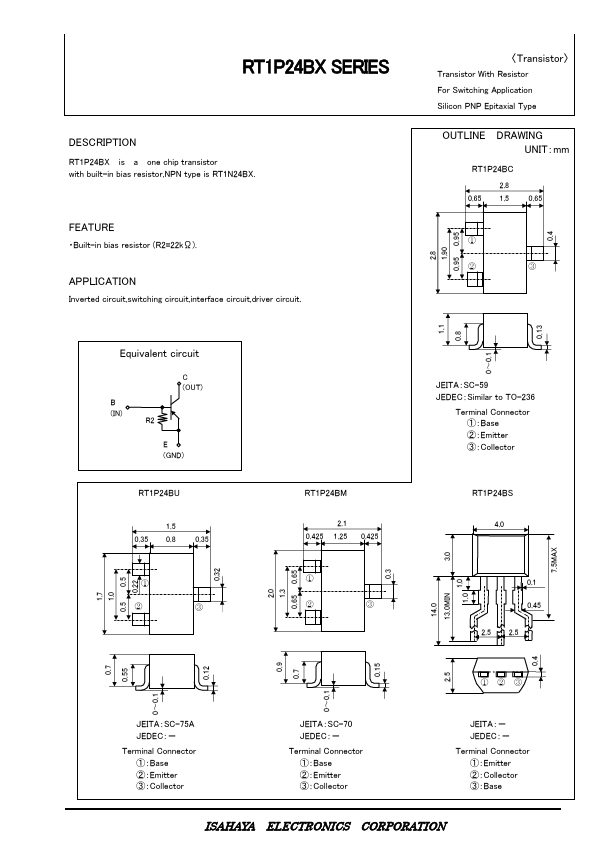

RT1P24BX is a one chip transistor with built-in bias resistor,NPN type is RT1N24BX.
RT1P24BX SERIES.
| Part Number | Description |
|---|---|
| RT1P24BC | Silicon PNP Epitaxial Type Transistor |
| RT1P24BM | Silicon PNP Epitaxial Type Transistor |
| RT1P24BU | Silicon PNP Epitaxial Type Transistor |
| RT1P240C | Silicon PNP Epitaxial Type Transistor |
| RT1P240M | Silicon PNP Epitaxial Type Transistor |
| RT1P240S | Silicon PNP Epitaxial Type Transistor |
| RT1P240U | Silicon PNP Epitaxial Type Transistor |
| RT1P241C | Silicon PNP Epitaxial Type Transistor |
| RT1P241M | Silicon PNP Epitaxial Type Transistor |
| RT1P241S | Silicon PNP Epitaxial Type Transistor |
