Datasheet Details
| Part number | RT1P144C |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 462.33 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P144C Download (PDF) |
|
|
| Part number | RT1P144C |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 462.33 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P144C Download (PDF) |
|
|
|

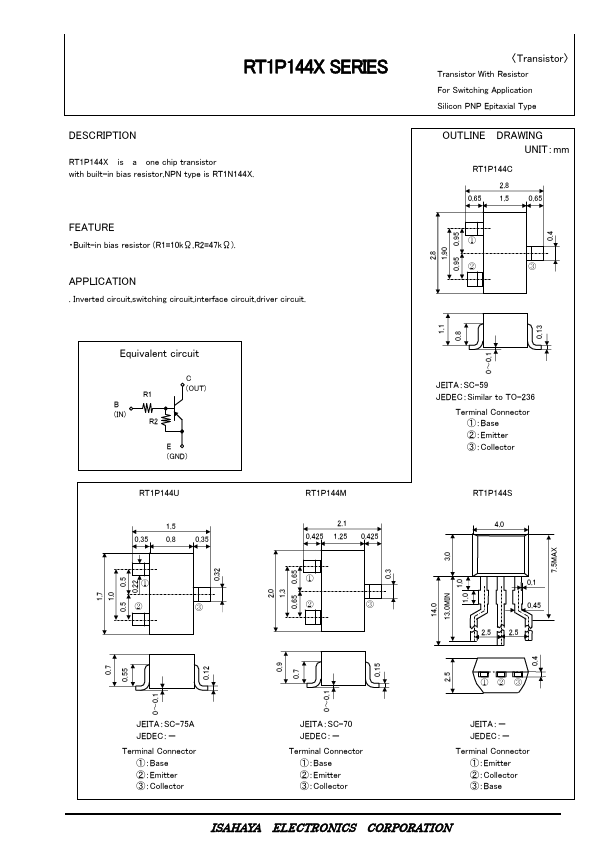

RT1P144X is a one chip transistor with built-in bias resistor,NPN type is RT1N144X.
RT1P144X SERIES.
| Part Number | Description |
|---|---|
| RT1P144M | Silicon PNP Epitaxial Type Transistor |
| RT1P144S | Silicon PNP Epitaxial Type Transistor |
| RT1P144U | Silicon PNP Epitaxial Type Transistor |
| RT1P141C | Silicon PNP Epitaxial Type Transistor |
| RT1P141M | Silicon PNP Epitaxial Type Transistor |
| RT1P141S | Silicon PNP Epitaxial Type Transistor |
| RT1P141U | Silicon PNP Epitaxial Type Transistor |
| RT1P14BC | Silicon PNP Epitaxial Type Transistor |
| RT1P14BM | Silicon PNP Epitaxial Type Transistor |
| RT1P14BS | Silicon PNP Epitaxial Type Transistor |
