Datasheet Details
| Part number | RT1P130C |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 477.18 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P130C Download (PDF) |
|
|
| Part number | RT1P130C |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 477.18 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P130C Download (PDF) |
|
|
|

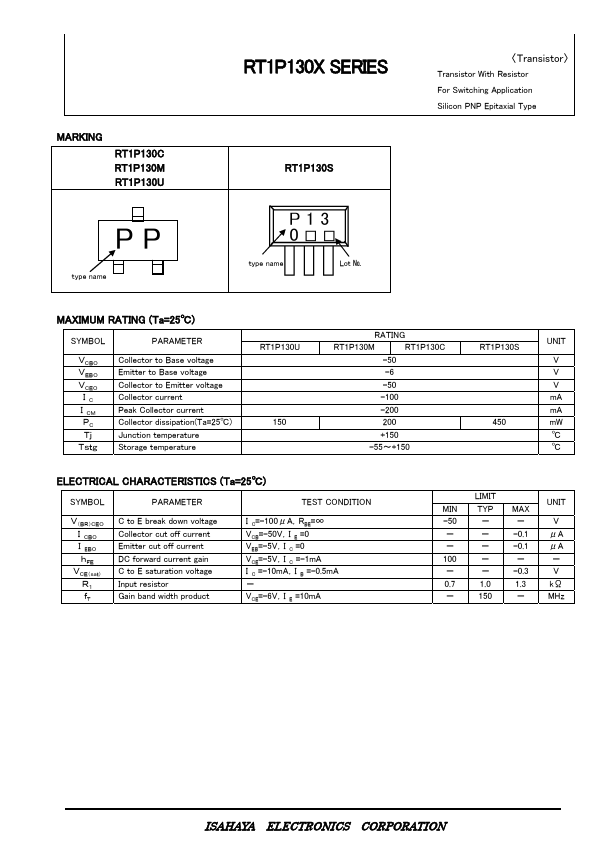

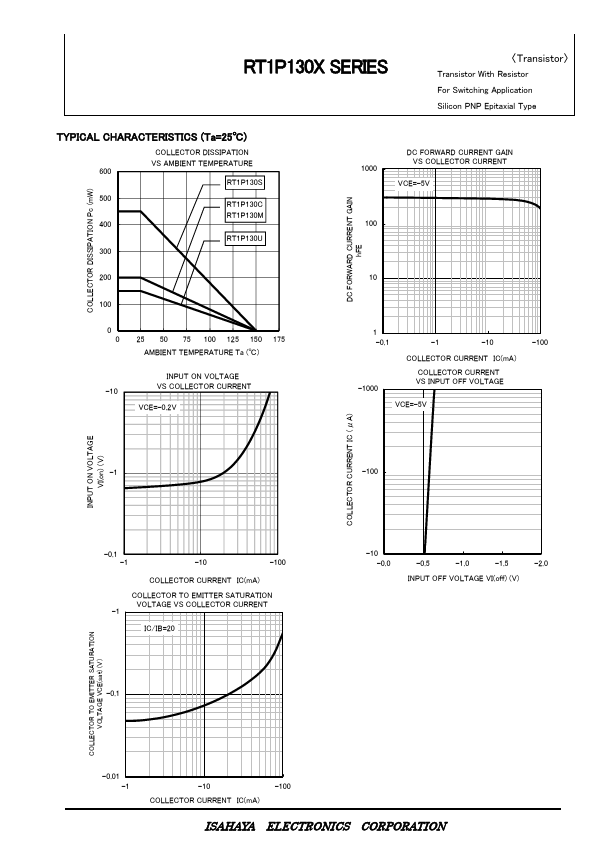

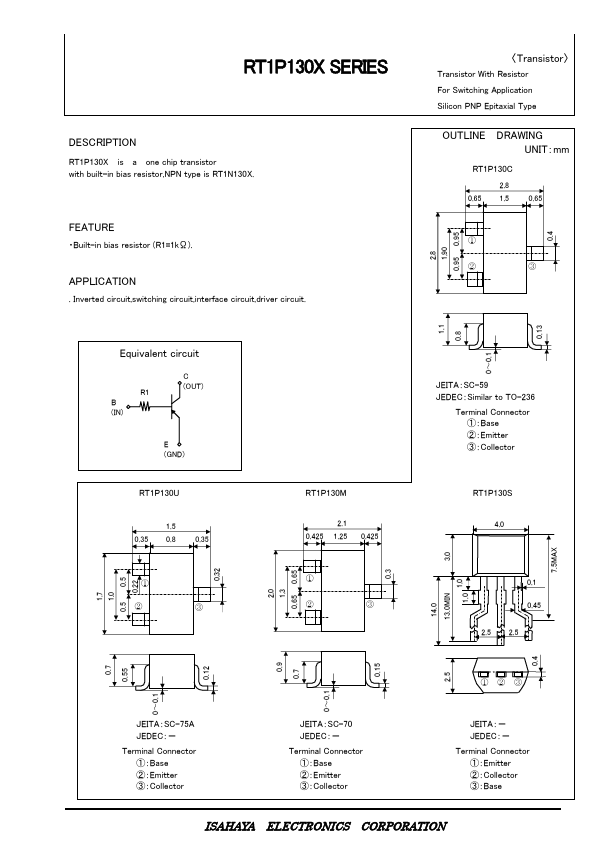

RT1P130X is a one chip transistor with built-in bias resistor,NPN type is RT1N130X.
RT1P130X SERIES.
| Part Number | Description |
|---|---|
| RT1P130M | Silicon PNP Epitaxial Type Transistor |
| RT1P130S | Silicon PNP Epitaxial Type Transistor |
| RT1P130U | Silicon PNP Epitaxial Type Transistor |
| RT1P136C | Silicon PNP Epitaxial Type Transistor |
| RT1P136M | Silicon PNP Epitaxial Type Transistor |
| RT1P136S | Silicon PNP Epitaxial Type Transistor |
| RT1P136U | Silicon PNP Epitaxial Type Transistor |
| RT1P137L | Silicon PNP Epitaxial Type Transistor |
| RT1P137P | Silicon PNP Epitaxial Type Transistor |
| RT1P137S | Silicon PNP Epitaxial Type Transistor |
