INC5002AP1-TH51 - Silicon NPN Epitaxial Transistor

General Description

INC5002AP1 is a silicon NPN epitaxial transistor designed for relay drive or Power supply application.

Small package for easy mounting.

High voltage VCEO=60V High collector current IC=3A Low VCE(sat) VCE（sat）=0.6V max（@IC=3A/ IB=300mA） High collector dissipation PC=5

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
INC800 Lensed A-Line Vertical Downlight prescolite

Other Datasheets by Isahaya Electronics Corporation

Part Number Description
INC5003AH1 TRANSISTOR
INC1001AC1 SILICON NPN EPITAXIAL TYPE TRANSISTOR
INC1001AC1-T150 SILICON NPN EPITAXIAL TYPE TRANSISTOR
INC6005AC1 TRANSISTOR
INC6006AC1 TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

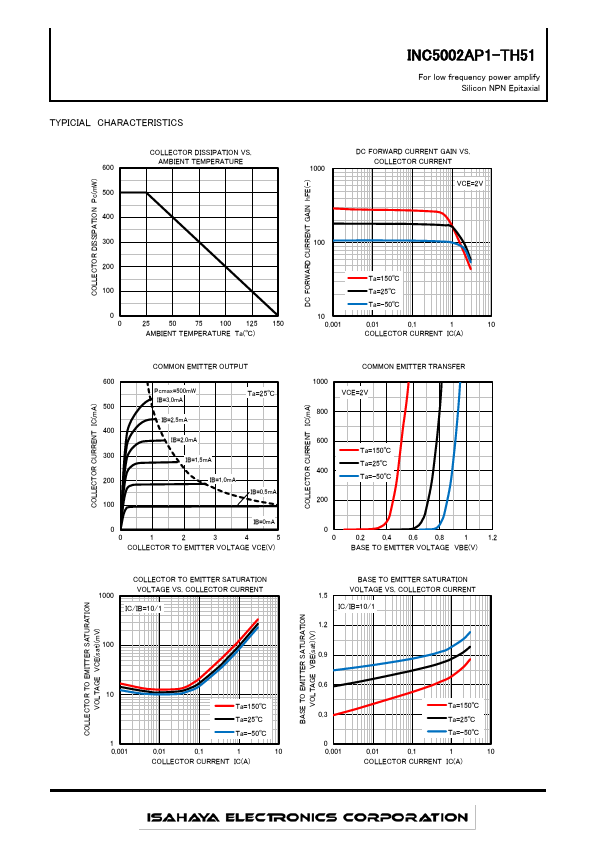

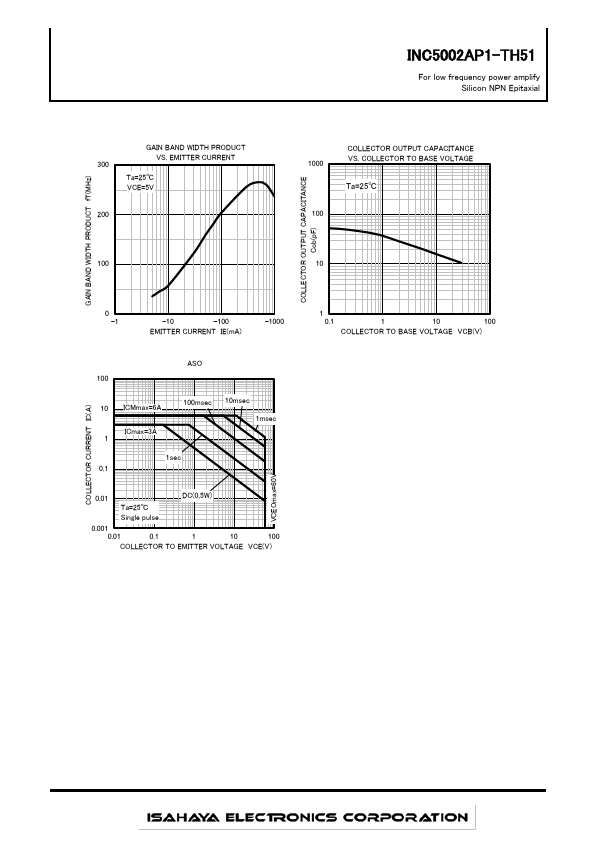

DESCRIPTION INC5002AP1 is a silicon NPN epitaxial transistor designed for relay drive or Power supply application. FEATURE ●Small package for easy mounting. ●High voltage VCEO=60V ●High collector current IC=3A ●Low VCE(sat) VCE（sat）=0.6V max（@IC=3A/ IB=300mA） ●High collector dissipation PC=500mW APPLICATION DC･DC converter, Relay drive, Motor drive 1.0 2.5 3.9 INC5002AP1-TH51 For low frequency power amplify Silicon NPN Epitaxial OUTLINE DRAWING 4.4 1.6 AEC-Q101 Compliance UNIT：ｍｍ 1.5 ③②① 0.5 0.4 1.5 3.0 0.
